Case Farmall 40, 45, 50 Tractor Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
1414 pages and 1176 pages
Specifications:
•
Brand:
Case
•
Model:
Farmall 40, 45, 50 and Farmall 40 CVT, 45 CVT, 50 CVT
•
Type:
Tractor
•
Manuals:
Service Manual
•
Publication Numbers:
84234520 (May 2009) & 87473199 (May 2008)
•
Language:
English
•
Format:
PDF

Description

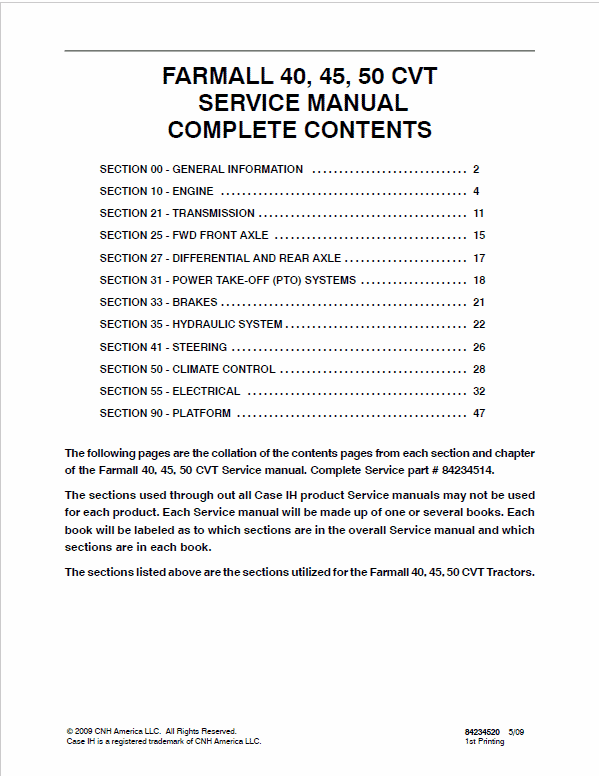

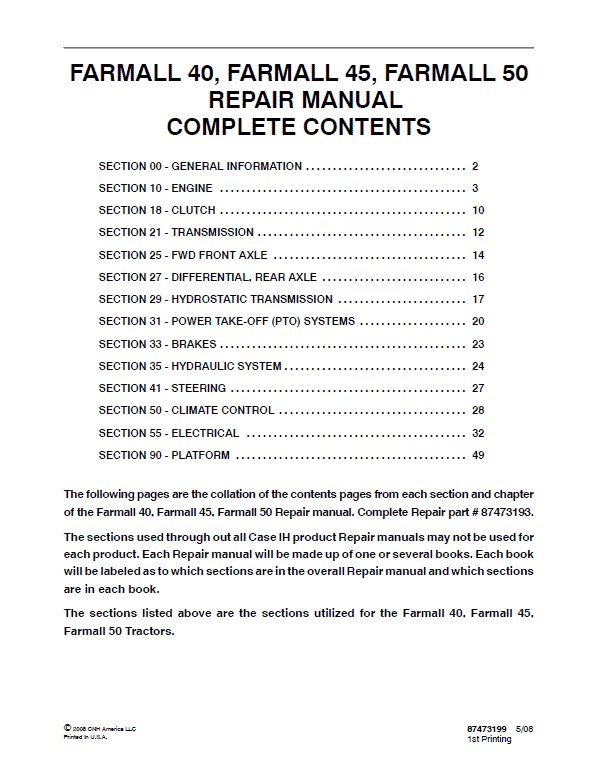

Table of Contents
General Information
Engine
Clutch

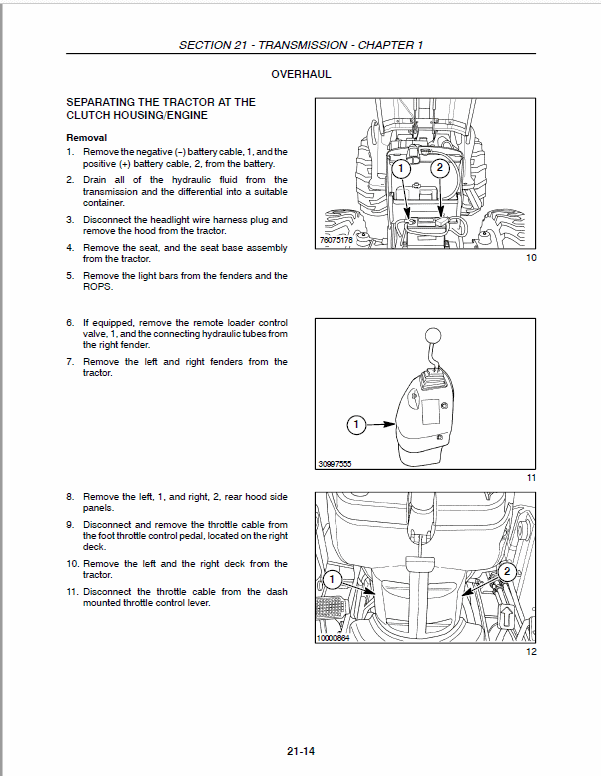

Transmission
Front Axle
Rear Axle

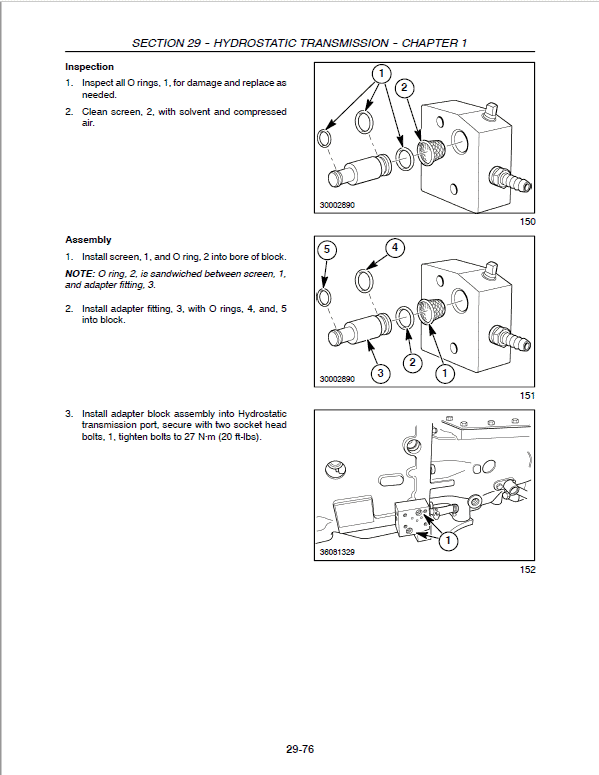

Hydrostatic Transmission
Power Take Off
Brakes
Hydraulic Systems
Steering
Cab climate control
Electrical System
Platform
Manual Extract:
CONNECTING RODS, BEARINGS, AND PISTONS, RINGS
Removal
1. Remove the two nuts, 1, retaining the connecting rod caps, 2.
2. Remove the connecting rod caps and lower half of connecting rod bearing.
3. If necessary, remove any ridge from the top of the cylinder bores using a suitable ridge reamer.
4. Push the piston and connecting rod out of the cylinder block.
5. Replace the connecting rod cap to the piston assembly it was removed from. Keep together in cylinder sequence.
