Case Farmall 110U, 120U Tractor Service Manual Workshop Guide
Case Farmall 110U, 120U Tractor Service Manual Workshop Guide
Regular price
$67.50 USD
Regular price
Sale price
$67.50 USD
Taxes included.
Shipping calculated at checkout.
Quantity
.
In Stock
Couldn't load pickup availability
Format : PDF
SUPPLIED AS DOWNLOADABLE LINK
Manual Included:
•
Service Manual:
4341 pages & 4979 pages
Specifications:
•
Brand:
Case
•
Model:
Farmall 110U, 120U
•
Type:
Tractor
•
Manuals:
Service Manual
•
Publication Numbers:
51487919 (July 2018) & 48038069 (Oct 2017)
•
Language:
English
•
Format:
PDF
Description
Table of Contents
Introduction
Engine
Clutch

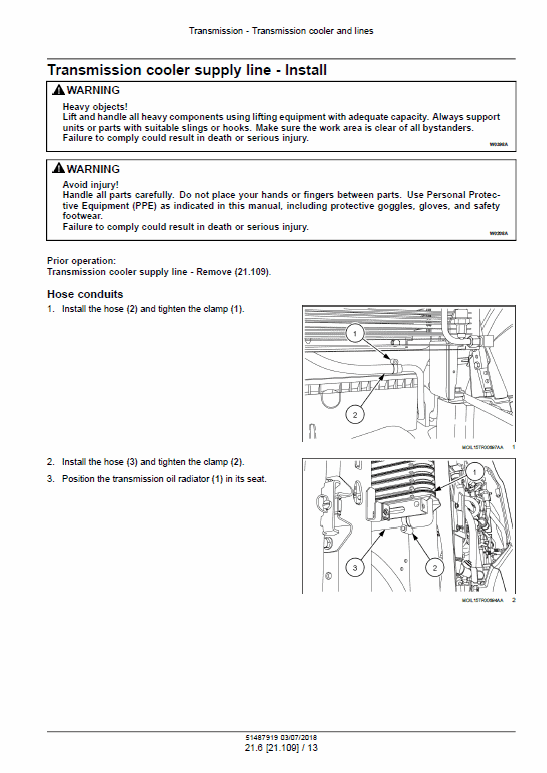

Transmission
Four Wheel Drive
Front Axle
Rear Axle

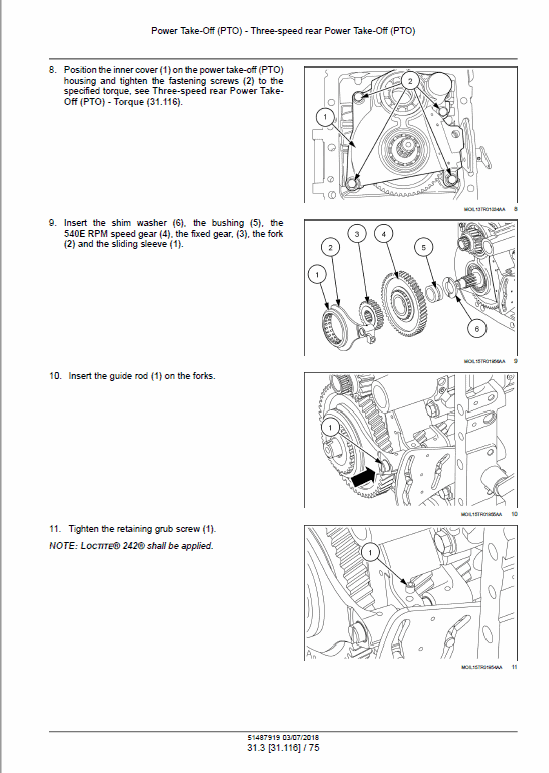

Power Take Off
Brake and Controls
Hydraulic Systems
Hitches, Drawbars and implement couplings
Frames and Ballasting
Steering
Wheels
Cab climate control
Electrical System
Front Loader and Bucket
Accessories
Platform, cab, bodywork and decals
Special Tools
Manual Extract:
Flushing Engine cooling system
Flushing the system
To flush the system, proceed as follows:
1. Turn the temperature control knob (1) onto the red sector in position (2) figure 1. This ensures the complete drain of the coolant.
2. With cold engine loosen and remove the expansion tank cap (1) figure 2.
3. Remove the radiator cap (1) figure 3 and drain the coolant. Reassemble the radiator cap (1).
4. Fill the expansion tank up to the notch (2) figure 2 with a filtered solution of soda Solvay and water in a ratio of 250 g (8.8 oz) of soda to every 10 L (2.64 US gal) of water.
5. Retighten the expansion tank cap (1) figure 2.
6. Run the tractor for about an hour.
7. Shut down the engine.
8. Wait that the engine cools then remove the drain cap (1) figure 3 of the radiator and drain the washing solution.
9. Circulate pure water by pouring it into the expansion tank and allowing it to drain from the radiator drain hole.
10. Reassemble the drain plug (1) figure 3 of the radiator and fill the expansion tank with water up to the notch (2) figure 2.
11. Start up the engine for a few minutes and drain again the system as previously described.
12. Fill the radiator through the expansion tank with new coolant up to the notch (2) figure 1 and leave the expansion tank open.
13. Start the engine and allow it to run until the engine's thermostatic valve will be opened and all the air will be ejected by the cooling system (the coolant level in the expansion tank should decrease).
14. Stop the engine, wait for the coolant to cool and top the coolant up to the notch (2) figure 1.
15. Refit the cap (1) figure 1.
