Case DX48, DX55, DX60 Tractor Service Manual Workshop Guide
Case DX48, DX55, DX60 Tractor Service Manual Workshop Guide
Regular price
$61.50 USD
Regular price
Sale price
$61.50 USD
Taxes included.
Shipping calculated at checkout.
Quantity
.
In Stock
Couldn't load pickup availability
Format : PDF
SUPPLIED AS DOWNLOADABLE LINK
Manual Included:
•
Service Manual:
1068 pages and 1438 pages
Specifications:
•
Brand:
Case
•
Model:
DX48, DX55 and DX55, DX60
•
Type:
Tractor
•
Manuals:
Service Manual
•
Publication Numbers:
87367137 (Aug 2005) & 84140463 (Jul 2008)
•
Language:
English
•
Format:
PDF
Description

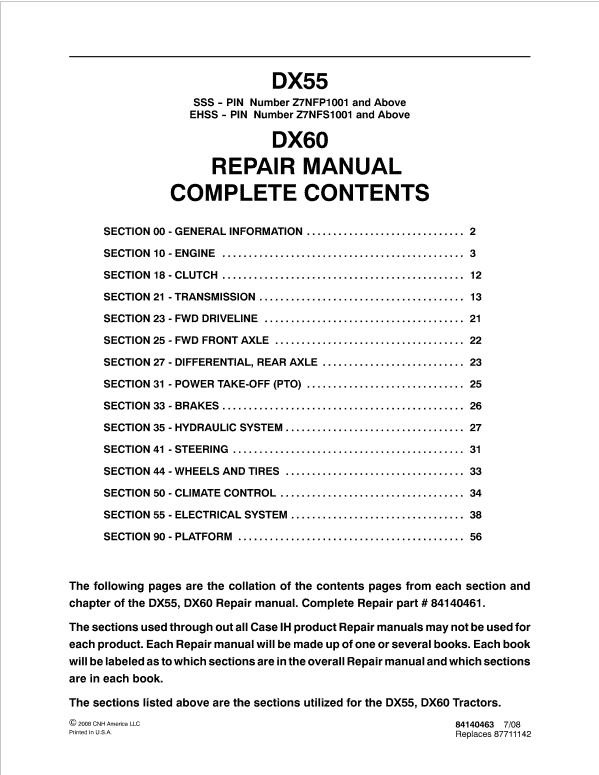

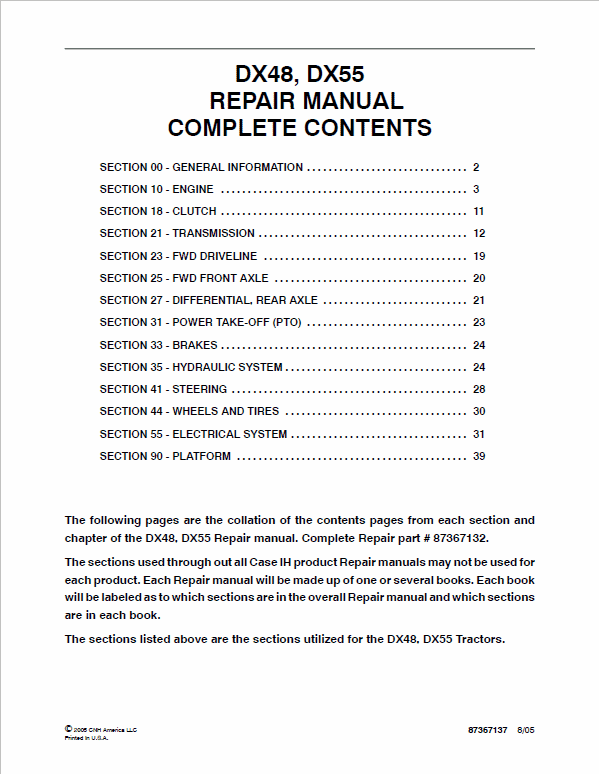

Table of Contents
General
Engine
Clutch
Transmission
FWD Driveline
Front Axle
Rear Axle
Power Take Off
Brakes
Hydraulic Systems
Steering
Wheels
Cab climate control
Electrical System
Platform, cab, bodywork and decals
Manual Extract:
CRANKSHAFT MAIN BEARING AND THRUST WASHER
Removal and Inspection
1. Remove the two retaining bolts from the bearing holders, 1.
2. Remove the bearing holders and bearing liners, 2 and 3.
3. Position a piece of plastigauge across the full width of the bearing liners.
4. Install the bearing holder and tighten the bolts to 49.0 – 53.9 N⋅m (36.2 – 39.8 ft. lbs.).
NOTE: Do not permit the bearing holder to rotate, even the slightest amount.
5. Remove the bearing holders and measure the width of the flattened plastigauge using the gauge printed on the plastigauge package.
6. Replace components or grind the crankshaft to the next undersize bearing as required to obtain the correct clearance. See "Specifications" later in this section.
7. Check the thrust bearings, 4, for wear, poor contact, burning, or other defects. Using a micrometer measure the washer thickness. If washer thickness is not within allowable limits or found to be defective, the washers must be replaced.
Standard Thickness: 2.95 mm-3.0 mm (0.116I-0.118I)
Allowable Limit: 2.8 mm (0.11I)
