Case DV23, DV26, DV23CC, DV26CC Roller Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
505 pages
Specifications:
•
Brand:
Case
•
Model:
DV23, DV26, DV23CC, DV26CC
•
Type:
Roller
•
Manuals:
Service Manual
•
Publication Number:
48142067 (Sep 2017)
•
Language:
English
•
Format:
PDF

Description
Table of Contents
Content
Introduction
Maintenance

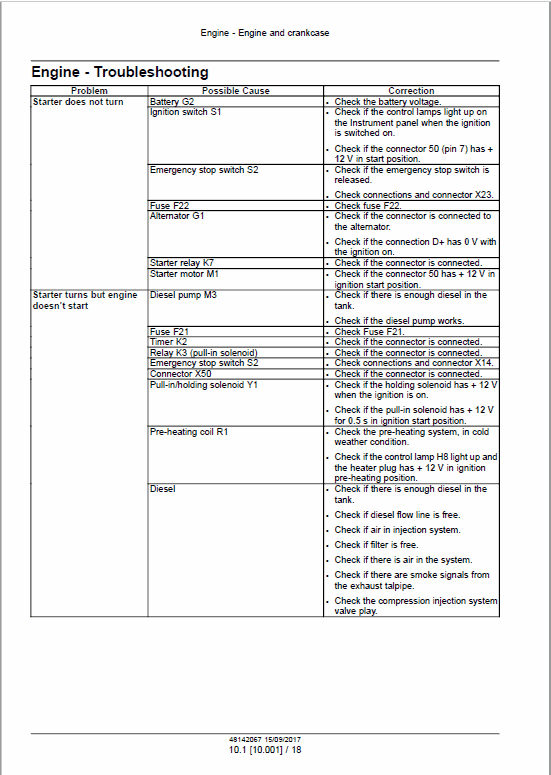

Engine

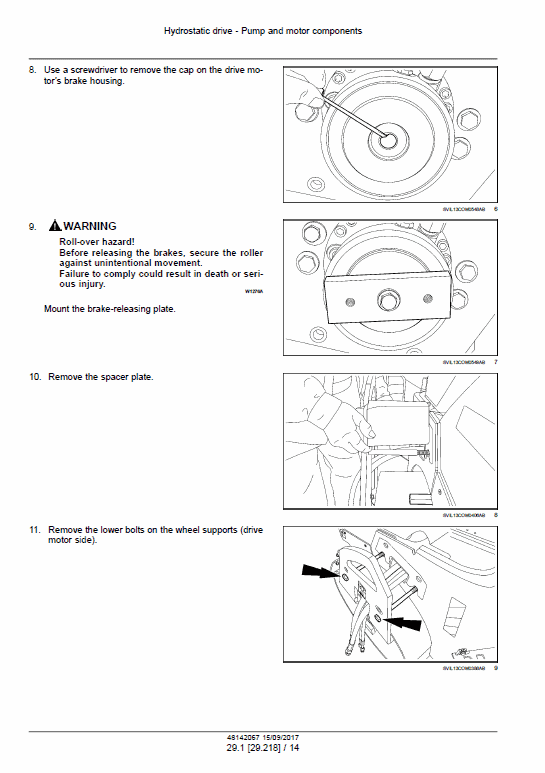

Hydrostatic Drive
Brakes and Controls

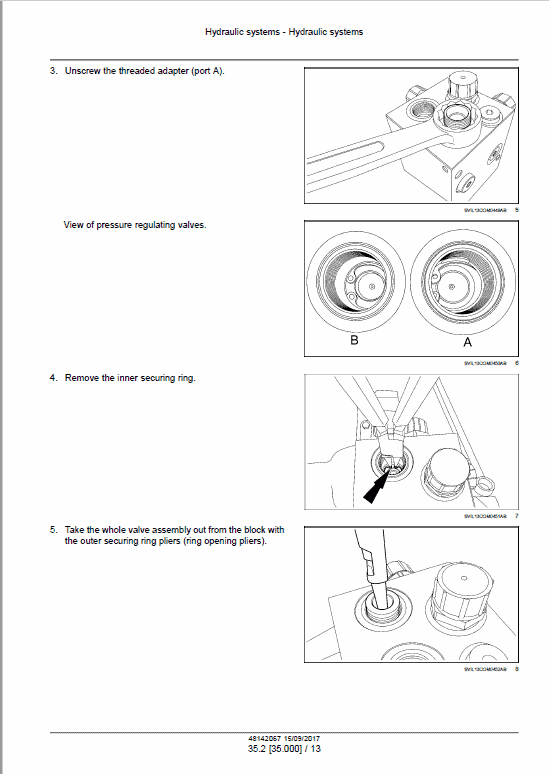

Hydraulic System
Frames and Ballasting
Steering
Wheels
Electrical System
Platform, Cab, Bodywork and Decals
Manual Extract: Brake pump – Check
If the roller moves in spite of the actuated parking brake switch, you must perform the brake test.
1. Remove the brake hose from the front roller drum drive motor.
2. Seal the open hose end so that it can be pressurized.
3. Start the roller.
4. Press the parking brake switch.
The brake light must extinguish quickly.
5. Test the forwards and the backwards drive Because the front brake remains activated, the roller does not move.
6. Switch the roller off.
7. Reinstall the brake hose.
8. Repeat the steps 1 to 7 for the rear drive motor.
9. Make absolutely sure that you have reconnected all the brake lines!
10. Start the roller.
The brake light must extinguish quickly.
11. Test the forwards and the backwards drive.
