Case CX700B Crawler Excavator Service Manual Workshop Guide
Case CX700B Crawler Excavator Service Manual Workshop Guide
Regular price
$58.50 USD
Regular price
Sale price
$58.50 USD
Taxes included.
Shipping calculated at checkout.
Quantity
.
In Stock
Couldn't load pickup availability
Format : PDF
SUPPLIED AS DOWNLOADABLE LINK
Manual Included:
•
Service Manual:
1488 Pages
Specifications:
•
Brand:
New Holland
•
Model:
CX700B
•
Type:
Excavator
•
Manuals:
Service Manual
•
Publication Numbers:
84124939D (April 2010)
•
Language:
English
•
Format:
PDF
Description

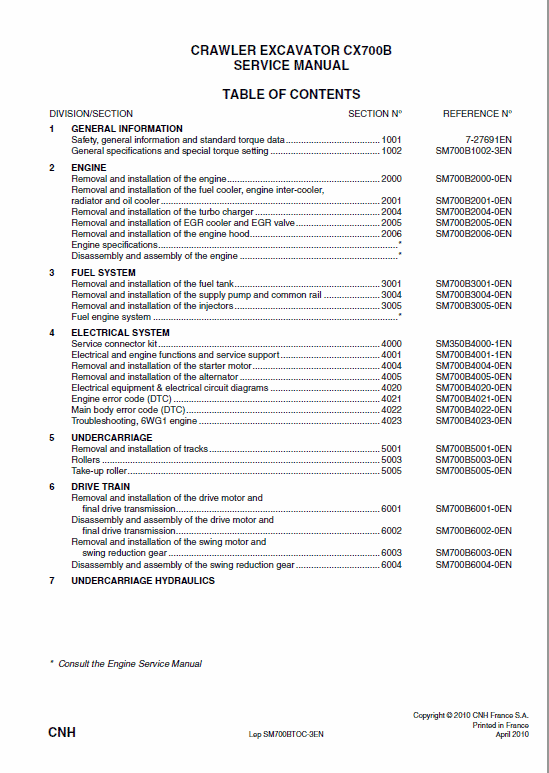

Table of Contents
General Information
Engine
Fuel System
Frames and ballasting
Electrical systems
Undercarriage
Drive Train
Upper structure Hydraulics
Upper structure
Manual Extract: REMOVAL OF TAKE-UP ROLLER
1 Removal of take-up roller
[1] Remove the shoe assembly.
See the "Removal and Installation of Shoe Assembly" procedure.
[2] Use a crowbar (3) to pull off the take-up roller (1) from the side frame (2).
[3] Install the lifting equipment (4) on the take-up roller (1) and hang it from the side frame (2) with the crane.
[4] Place the take-up roller (1) onto wood planks (6) as in the diagram. Use a wrench to remove the bolt (5) and separate the take-up roller and the grease cylinder (4).
