Case CX490D, CX500D Crawler Excavator Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
3480 pages
Specifications:
•
Brand:
New Holland
•
Model:
CX490D, CX500D
•
Type:
Excavator
•
Manuals:
Service Manual
•
Publication Numbers:
47937809 (Feb 2016)
•
Language:
English
•
Format:
PDF

Description
Table of Contents
Content
Introduction
Engine

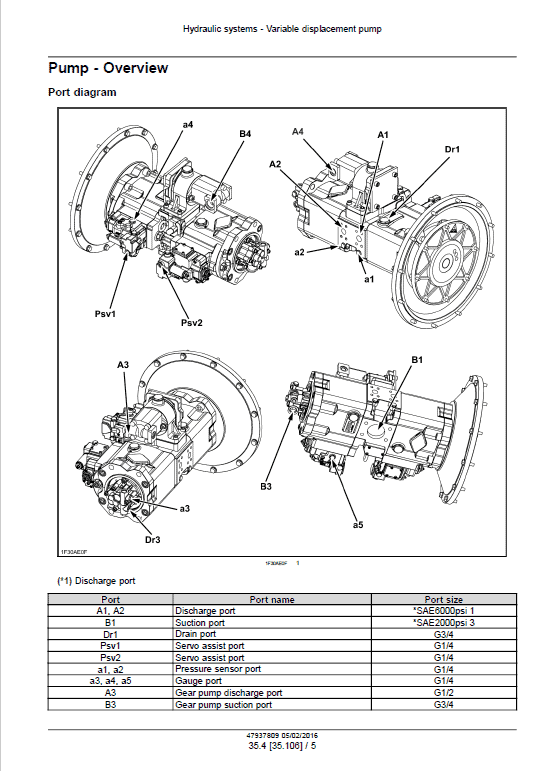

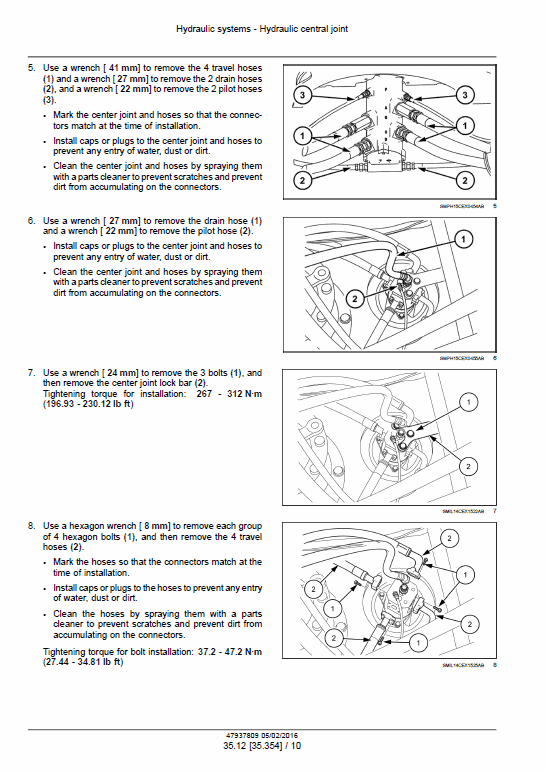

Hydraulics System
Frames and Ballasting
Tracks and Track Suspension
Cab Climate Control
Electrical System
Booms, dippers and buckets
Platform, cab, bodywork and decals
Special Tools Index
Hydraulic Schematics
Electrical Schematics
Manual Extract: EGR cooler removal
1. Disconnect the air leak pipe (3) from the engine assembly.
2. Disconnect the water charge pipe from the EGR cooler duct.
3. Disconnect the EGR cooler water hose (1) from the EGR cooler.
4. Remove the water return pipe (2) from the EGR cooler.
5. Remove the EGR cooler A (6) from the EGR cooler duct A (7) and the EGR cooler D (5).
6. Remove the EGR cooler B (2) from the EGR cooler duct B (1) and the EGR cooler C (3).
7. Remove the EGR cooler duct A (7) from the exhaust manifold and the bracket.
8. Remove the EGR cooler duct B (1) from the exhaust manifold and the bracket.
9. Remove the bracket from the cylinder head.
10. Remove the EGR cooler D (5) from the EGR valve duct (4).
11. Remove the EGR cooler C (3) from the EGR valve duct (4).
12. Remove the EGR valve duct (4) from the EGR valve
