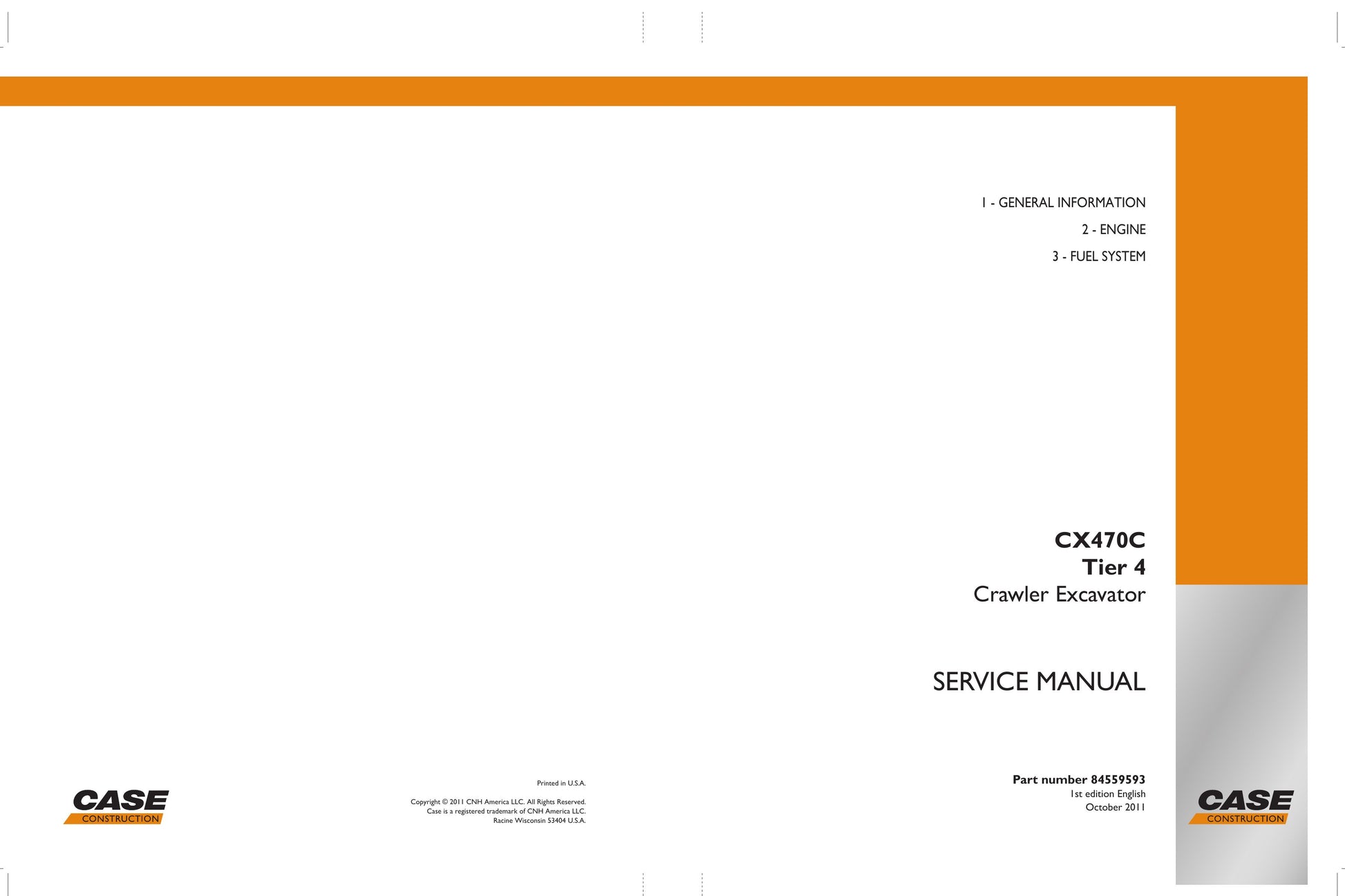

CASE CX470C Crawler Excavator Factory Workshop Service Manual 84559593

CASE CX470C Crawler Excavator Factory Workshop Service Manual 84559593
======================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 27.14 MB
Pages: 391
Format: PDF
Language: English
Brand: CASE

CONTENTS (Table of Contents):
----------------------------------------
- 1 - GENERAL INFORMATION
- Section 1001 - Safety, general information and standard torque data
- Section 1002A - Specifications
- Section 1002B - Main Equipment Table
- Section 1002C - Main Unit Weight
- Section 1002D - Maintenance Standards
- Section 1002E - Bolt Size and Torque Table
- Section 1002F - Overall View
- Section 1003 - List of special tools
- Section 1004 - FLUIDS AND LUBRICANTS
- Section 1005 - Conversion Table
- Section 1900 - Abbreviations
- 2 - ENGINE
- Section 2000 - Removal and Installation of Engine Assembly
- Section 2001 - Removal and installation of the fuel cooler engine
inter-cooler radiator and oil cooler
- Section 2004 - Removal and Installation of Turbocharger assembly
- Section 2005 - Removal and Installation of EGR valve
- Section 2006 - Removal and Installation of Engine Hood
- Section 2007 - Removal and Installation of Muffler
- Section 2401 - Primary specifications
- Section 2415 - Removal and Installation of Cylinder head cover
- Section 2425 - Removal and Installation of Cylinder block
- Section 2445 - Lubrication System
- Section 2455 - Cooling System
- Section 2465 - Removal and Installation of Exhaust Manifold
- Section 2470 - Disassembly, Removal and Installation of DPD assembly
- 3 - FUEL SYSTEM
- Section 3001 - Removal and Installation of Fuel Tank
- Section 3004A - Removal and Installation of Fuel supply pump
- Section 3004B - Removal and Installation of Common rail assembly
... and 1 more sections

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
