Case CX37C Mini Excavator Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
1140 pages
Specifications:
•
Brand:
New Holland
•
Model:
CX37C
•
Type:
Mini Excavator
•
Manuals:
Service Manual
•
Publication Numbers:
448127449 (May 2017)
•
Language:
English
•
Format:
PDF

Description
Table of Contents
Content
Introduction

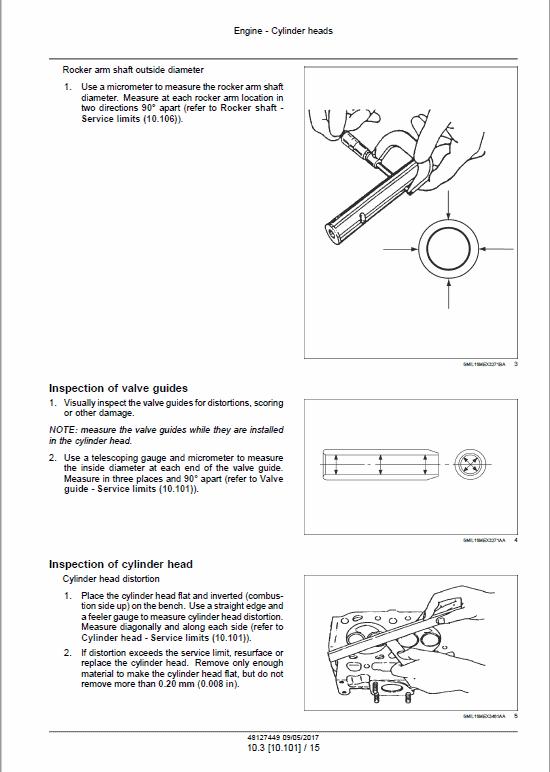

Engine

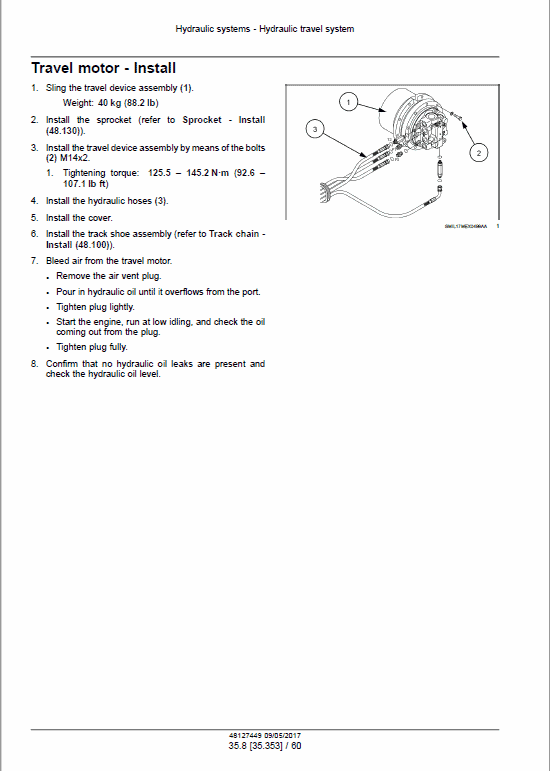

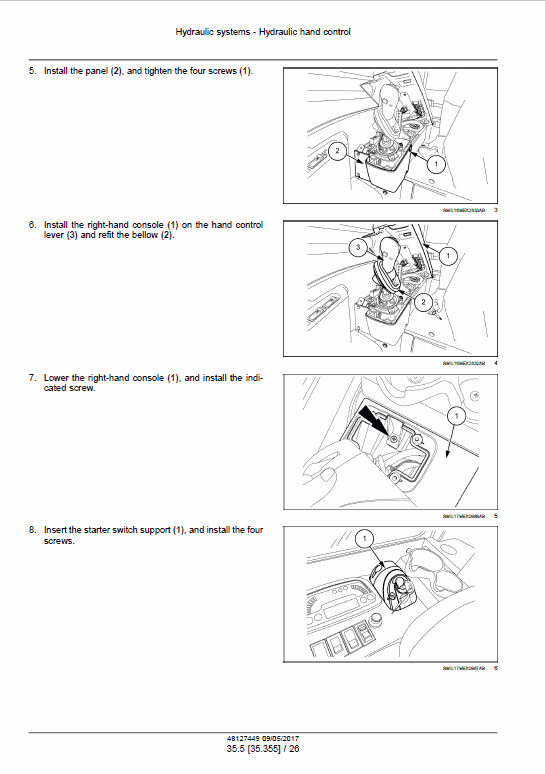

Hydraulics System
Frames and Ballasting
Tracks and Track Suspension
Electrical System
Booms, dippers and buckets
Platform, cab, bodywork and decals
Electrical Schematic
Hydraulic Schematic
Manual Extract: Hydraulic systems Boom up circuit
When the right-hand control lever is pulled back, the boom spools in the main control valve are moved to the up position by the pilot oil pressure from the remote control valve.
The oil from the P1 and P3 pump flows into the main control valve and then goes to the large chamber of boom cylinders.
At the same time, the oil from the small chamber of boom cylinders returns to the hydraulic oil tank through the boom spool in the main control valve.
When this happens, the boom goes up.
The excessive pressure in the boom cylinder bottom end circuit is prevented by relief valve (Rv).
When the boom is up and the control lever is returned to neutral position, the circuit for the holding pressure at the bottom end of the boom cylinder is closed by the boom holding valve (2).
This prevents the hydraulic drift of boom cylinder.
