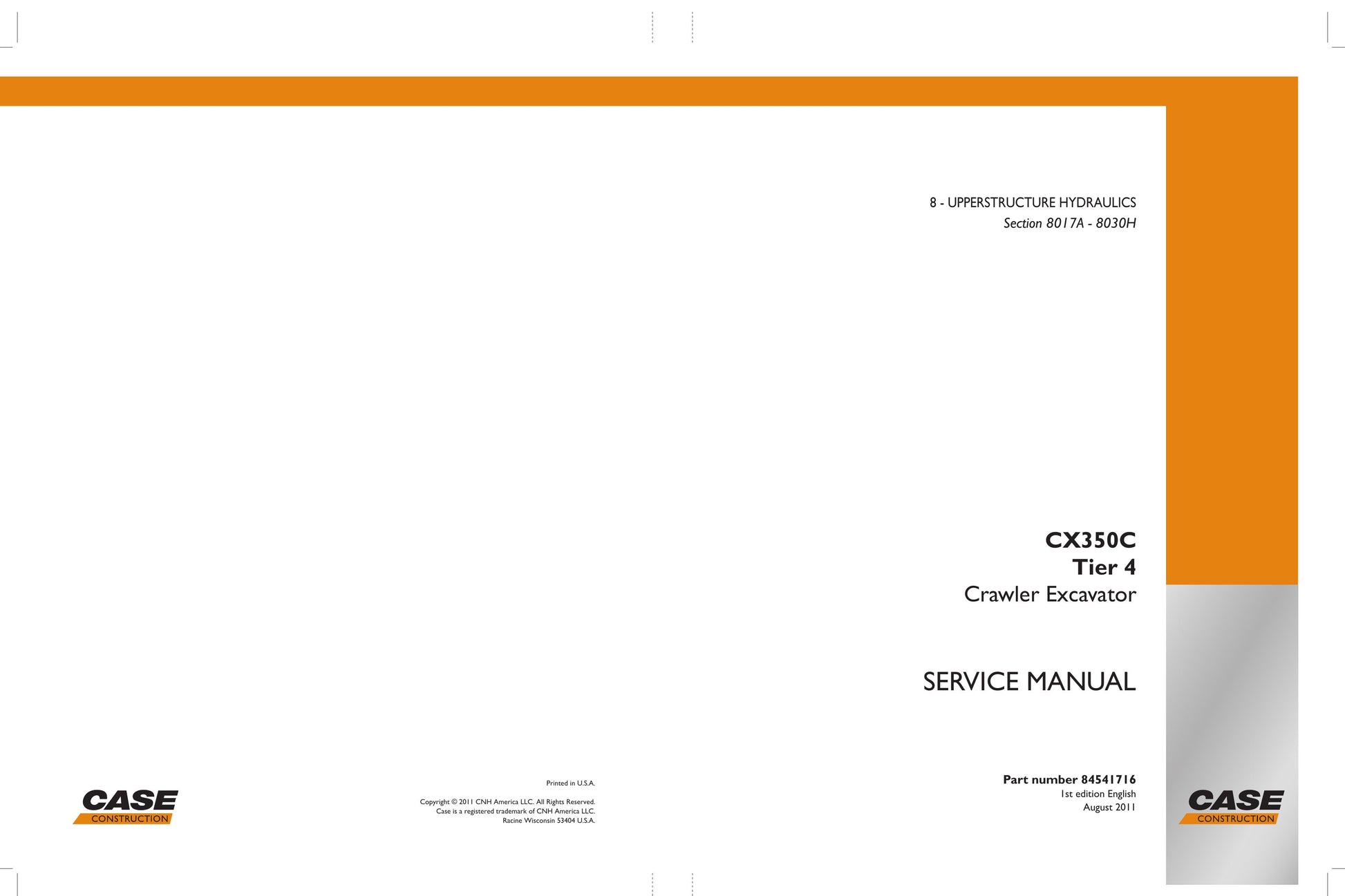

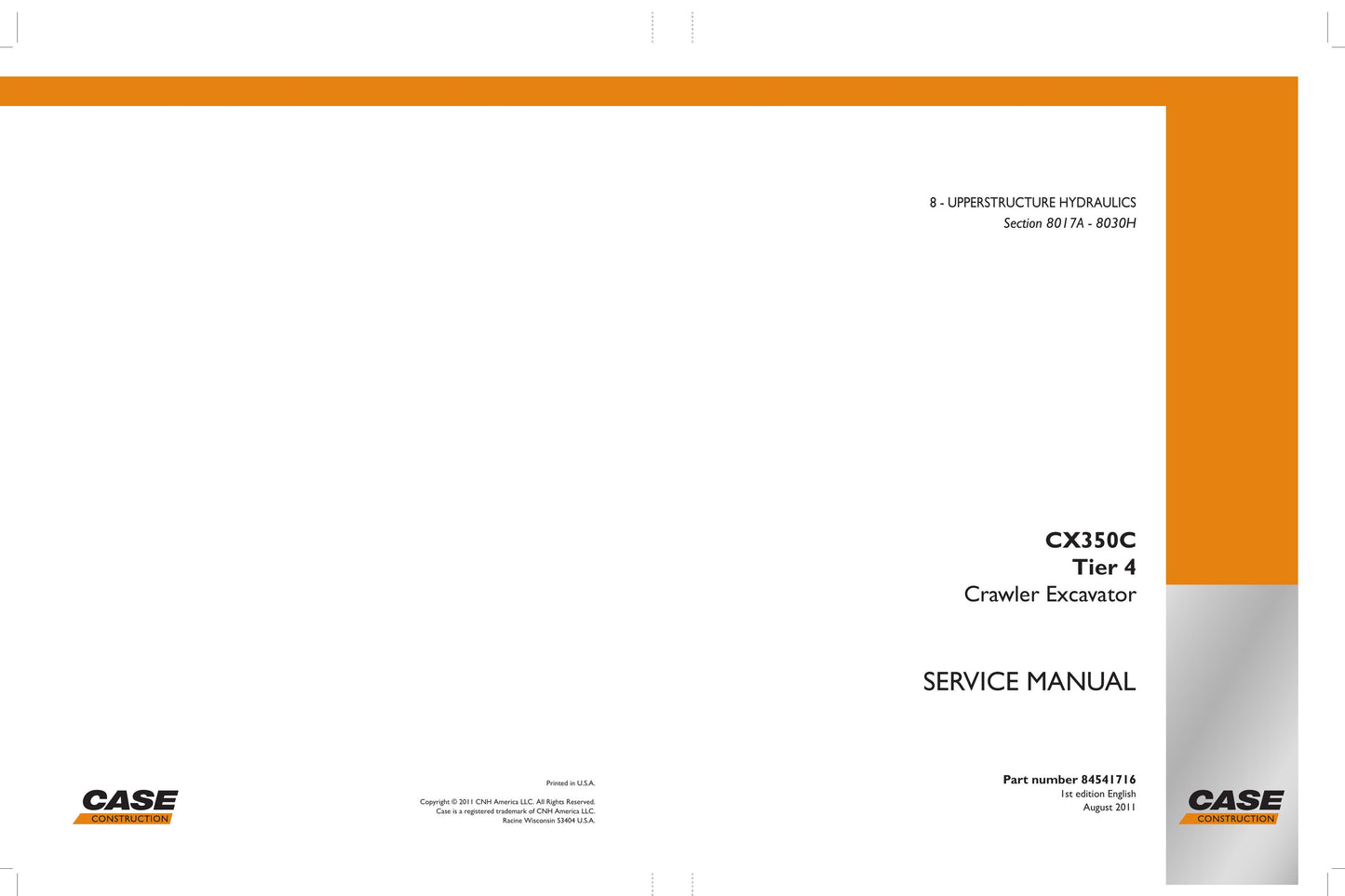

CASE CX350C Crawler Excavator Factory Workshop Service Manual 84541716

CASE CX350C Crawler Excavator Factory Workshop Service Manual 84541716
======================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 37.01 MB
Pages: 269
Format: PDF
Language: English
Brand: CASE

CONTENTS (Table of Contents):
----------------------------------------
- 8 - UPPERSTRUCTURE HYDRAULICS
- Section 8017A - Removal and Installation of Arm HBCV
- Section 8017B - Removal and Installation of Boom HBCV
- Section 8018 - Assembly and Disassembly of Center Joint
- Section 8019 - Assembly and Disassembly of Swing Motor
- Section 8020A - Explanation of Hydraulic Circuit and Operations (standard
model)
- Section 8020B - Explanation of Hydraulic Circuit and Operations (option)
- Section 8030A - Structure and Operation Explanation of Hydraulic Pump
- Section 8030B - Structure and Operation Explanation of Travel Motor
- Section 8030C - Structure and Operation Explanation of Swing Motor
- Section 8030D - Structure and Operation Explanation of Control Valve
- Section 8030E - 4 Stack Solenoid Valve Operation Explanation
- Section 8030F - Structure and Operation Explanation of Upper Pilot Valve
(remote control valve)
- Section 8030G - Structure and Operation Explanation of Travel Pilot Valve
(remote control valve)
- Section 8030H - Structure and Operation Explanation of Cushion Valve

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
