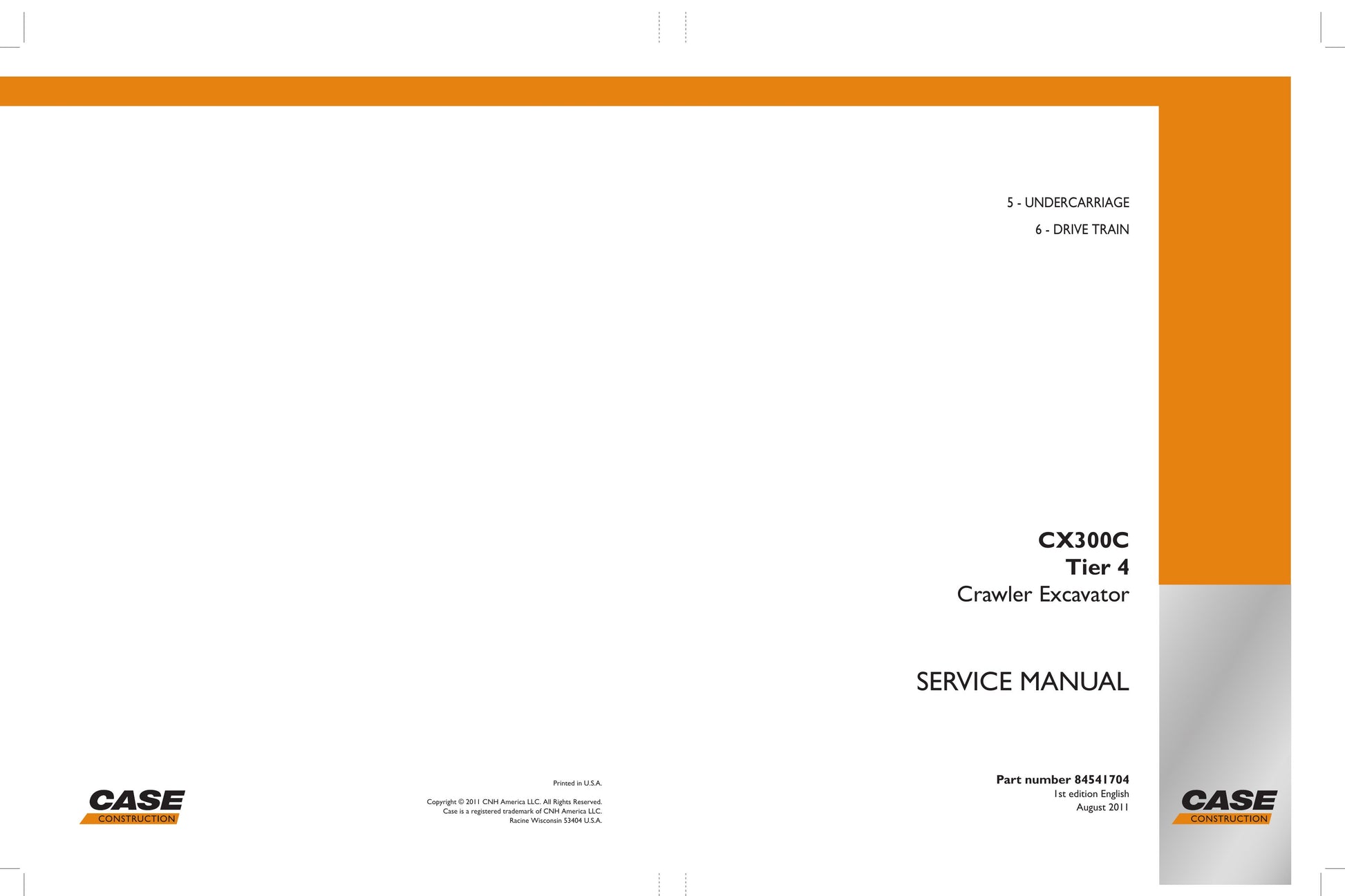

CASE CX300C Crawler Excavator Factory Workshop Service Manual 84541704

CASE CX300C Crawler Excavator Factory Workshop Service Manual 84541704
======================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 12.14 MB
Pages: 173
Format: PDF
Language: English
Brand: CASE

CONTENTS (Table of Contents):
----------------------------------------
- 5 - UNDERCARRIAGE
- Section 5001A - Removal and Installation of Shoe Assembly
- Section 5001B - Removal and Installation of Shoe Plate
- Section 5003A - Removal and Installation of Upper Roller
- Section 5003B - Assembly and Disassembly of Upper Roller
- Section 5003C - Removal and Installation of Lower Roller
- Section 5003D - Assembly and Disassembly of Lower Roller
- Section 5004 - Removal and Installation of Drive Sprocket
- Section 5005A - Removal and Installation of Take-up Roller
- Section 5005B - Assembly and Disassembly of Take-up Roller
- Section 5005C - Removal and Installation of Grease Cylinder
- Section 5005D - Assembly and Disassembly of Grease Cylinder
- 6 - DRIVE TRAIN
- Section 6001 - Removal and Installation of Travel Motor
- Section 6002 - Assembly and Disassembly of Travel Motor
- Section 6003 - Removal and Installation of Swing Unit
- Section 6004 - Assembly and Disassembly of Swing Unit

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
