CASE CX210B MH CX210B SL Crawler Excavator Factory Workshop Service Manual 84275412B

CASE CX210B MH CX210B SL Crawler Excavator Factory Workshop Service Manual 84275412B
====================================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 10.71 MB
Pages: 108
Format: PDF
Language: English
Brand: CASE

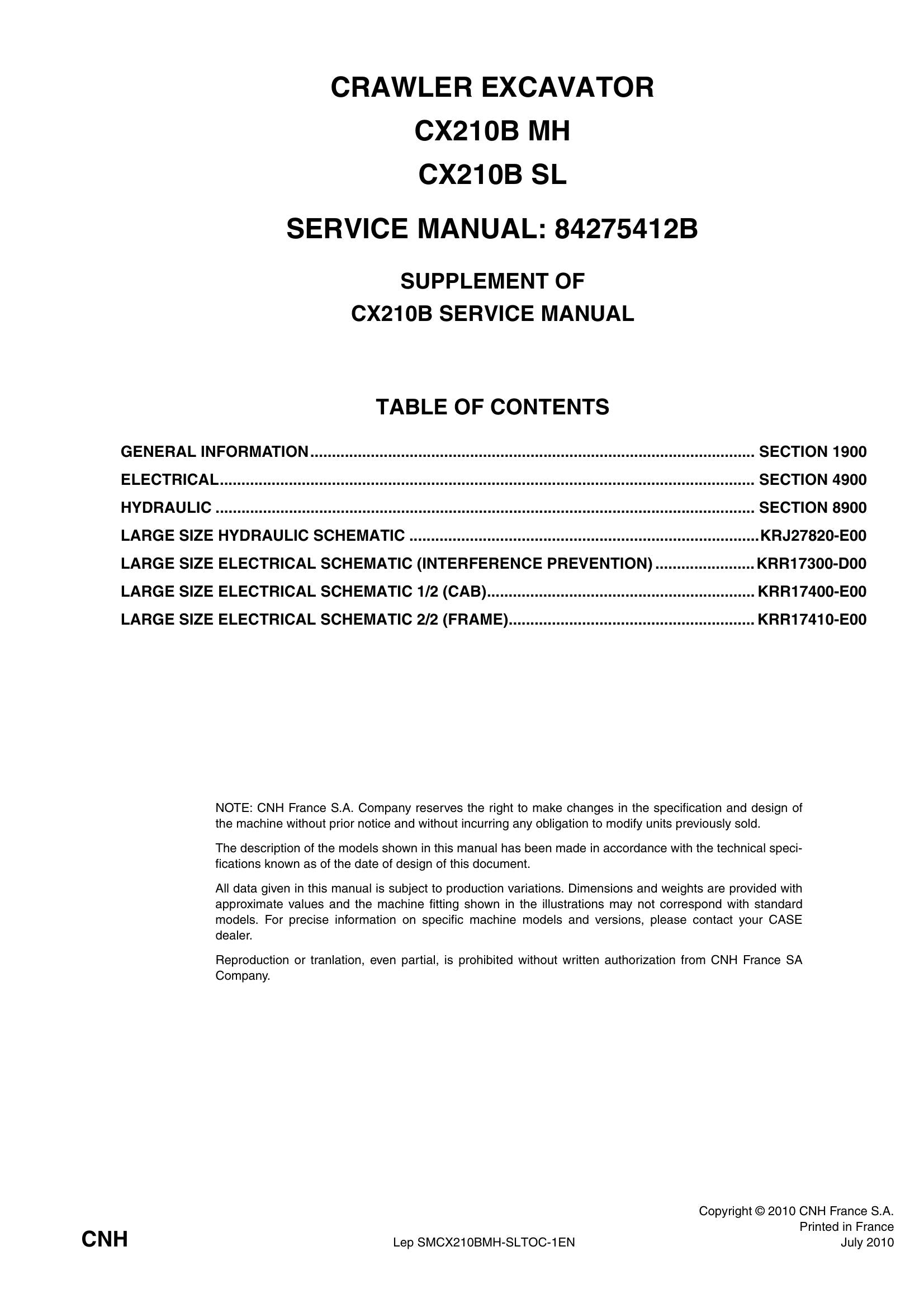

CONTENTS (Table of Contents):
----------------------------------------
- SMCX210BMHTOC-1EN
- SMCX210BMHTOC-0EN-Sec1900
- 1e_Main-Body
- 4e_Deta
- SMCX210BMHTOC-1EN-Sec4900
- 3e_Electrical
- 5e_Interference_Prevention_Device
- Functions
- System Function
- Interference Prevention System Operation
- Temporary Cancellation Function
- Handling Abnormalities
- Circuit Explanations
- Boom (up) Interference Prevention Function
- Elevator Cab Interference Prevention Function
- Arm (in) Interference Prevention Function
- Temporary Cancellation Function
- Handling Abnormalities (shut-off function)
- Handling Abnormalities (redundancy function)
- Settings Method
- [1] Start
- [2] Liftcrane mode
- [3] Display switching
- [4] Check
- [5] Abnormality display
- Operation Confirmation for Cab Interference Prevention Function
- Operation Confirmation of Emergency Cancellation
- Error Code
- When an abnormality occurs in the liftcrane device, the warning buzzer sounds in order to perform notification of the abnormality.
- See below for information on buzzer patterns.
... and 3 more sections

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
