Case CX180D Crawler Excavator Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
3207 pages
Specifications:
•
Brand:
New Holland
•
Model:
CX180D
•
Type:
Excavator
•
Manuals:
Service Manual
•
Publication Numbers:
47996196 (May 2016)
•
Language:
English
•
Format:
PDF

Description
Table of Contents
Contents
Introduction
Engine
Hydraulic systems
Frames and ballasting
Tracks and track suspension
Cab climate control
Electrical systems
Booms, dippers and buckets
Platform, cab, bodywork and decals
Special Tool index
Hydraulic Schematics
Electrical Schematics

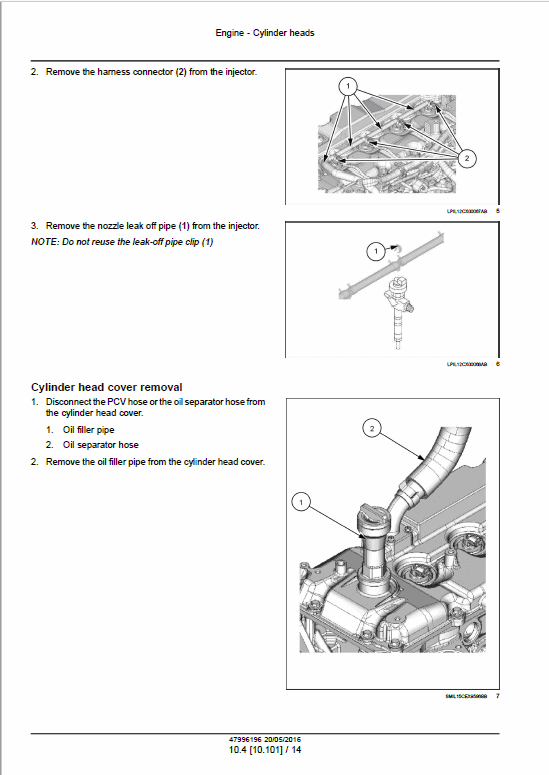

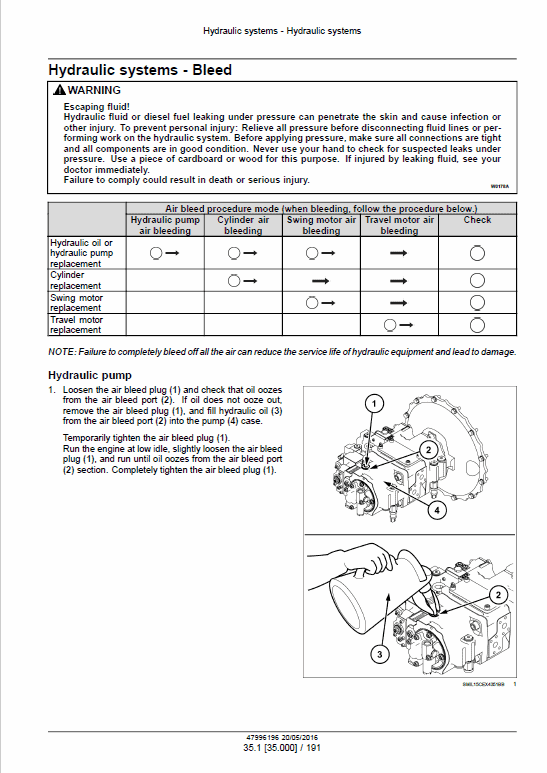

Manual Extract: Glow plug removal
1. Remove the glow plug connector from the glow plug.
2. Remove the glow plug from the cylinder head assembly.
Injection pipe removal
1. Remove the clip from the inlet pipe.
2. Remove the injection pipe from the injector and the common rail assembly (7).
NOTE: Do not reuse the removed injection pipe.
NOTICE: Seal the common rail and injector to prevent foreign material from entering.
1. No.1 injection pipe
2. No.2 injection pipe
3. No.3 injection pipe
4. No.4 injection pipe
5. Fuel leak-off pipe
6. Fuel pipe
