Case CX15B, CX18B Series 2 Mini Excavator Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
879 pages
Specifications:
•
Brand:
New Holland
•
Model:
CX15B, CX18B Series 2
•
Type:
Mini Excavator
•
Manuals:
Service Manual
•
Publication Numbers:
84533370B (May 2014)
•
Language:
English
•
Format:
PDF

Description
Table of Contents
Content
Introduction

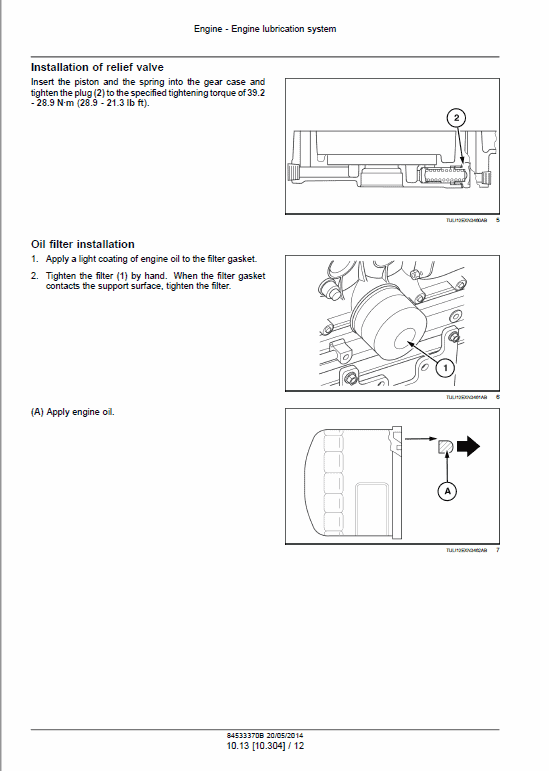

Engine
Hydraulics System
Frames and Ballasting
Tracks and Track Suspension
Electrical System
Booms, dippers and buckets
Dozer Blade and Arm
Platform, cab, bodywork and decals

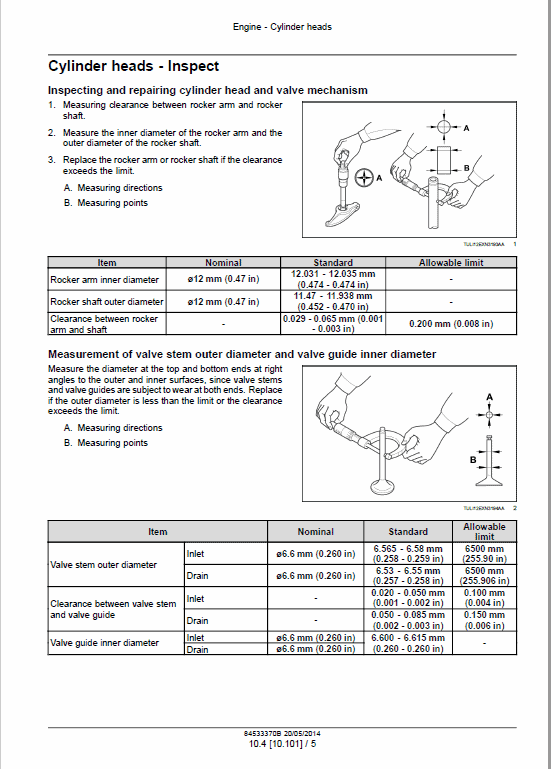

Manual Extract: Cylinder head – Assemble
Installation of cylinder head gasket
NOTE: Do not use liquid gasket.
1. Make sure that there is no dirt or dents on the top surfaces of the cylinder block and pistons.
2. Screw in two guide bolts  in the bolt holes of the block.
3. Place the new cylinder head gasket on the cylinder block using the guide bolts as a guide.
NOTE: The model name is stamped on the front top face of the gasket so that it is not confused with one for other model.
Installation of cylinder head assembly Install the cylinder head by means of the guide screws
