Case 9060B Excavator Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
803 pages
Specifications:
•
Brand:
Case
•
Model:
9060B
•
Type:
Excavator
•
Manuals:
Service Manual
•
Publication Numbers:
7-52711 (Apr 1999)
•
Language:
English
•
Format:
PDF

Description

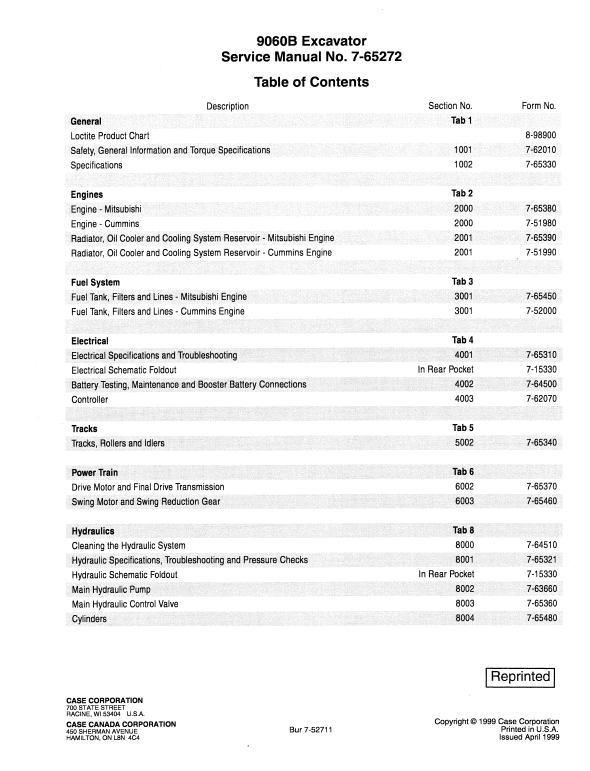

Table of Contents
Specification

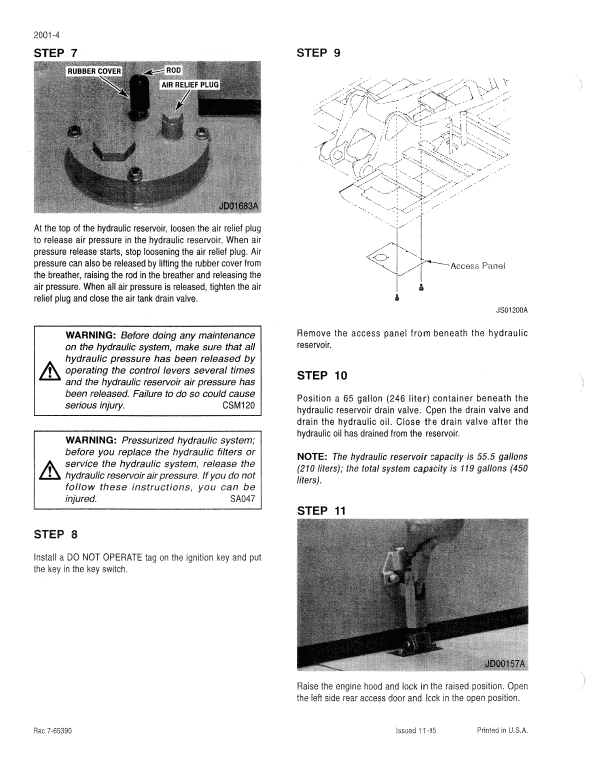

Maintenance

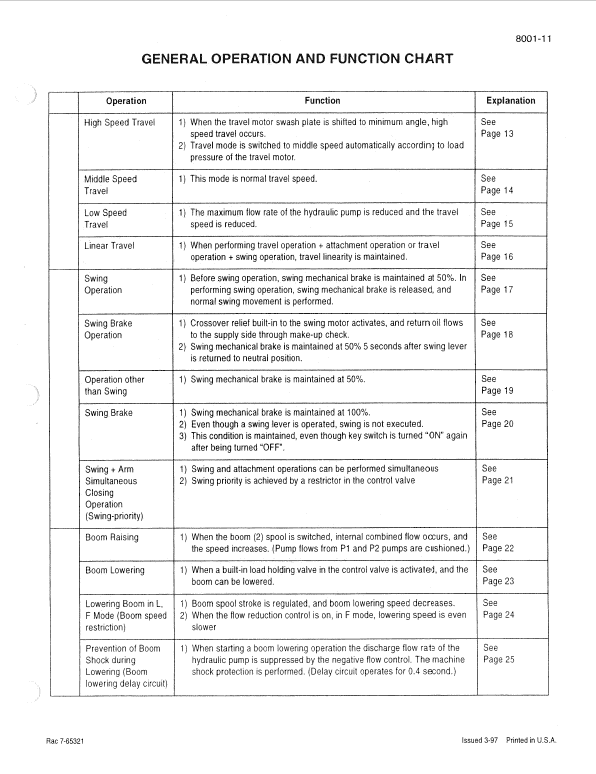

System

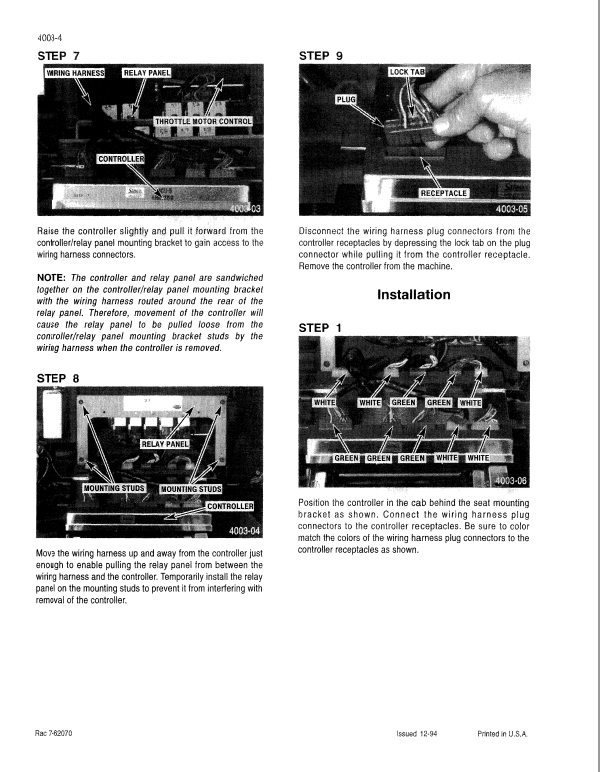

Disassembling
Troubleshooting
Engine
Installation Procedures for Optional Attachments
Manual Extract Arm Cylinder
NOTE: The numbers in parentheses;; in the following steps refer to the Arm Cylinder illustration on page 38.
1. Install the clamp (13} on the cylinder and secure with the cap screw ( 11) and washer ( 12). Tighten the cap screw to 25 lb-ft (32 Nm).
2. Install the hydraulic tubes (5) in the clamp (9) and secure the clamp with the lock washer (8) and cap screw (7).
Tighten the cap screw to 31 lb-.ft (51 Nm).
3. Install two new 0-rings (6) on the cylinder. Connect the two tubes (5) to the cylinder and secure with eight socket head cap screws (4). Tighten the cap screws to 72 lb-ft (92 Nm).
4. Install a new 0-ring (3) in the end of the tube. Install the plug (2) in the end of the tube. Tighten the plug to 176 lb-ft (226 Nm).
5. Install the lubrication fitting (1) in the cylinder.
