Case 788, 988 Plus Excavator Service Manual Workshop Guide
Case 788, 988 Plus Excavator Service Manual Workshop Guide
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
.
In Stock
Couldn't load pickup availability
Format : PDF
SUPPLIED AS DOWNLOADABLE LINK
Manual Included:
Service Manual:
1146 pages
Specifications:
Brand:
New Holland
Model:
Case 788, 988
Type:
Plus Excavator
Manuals:
Service Manual
Publication Numbers:
7-58655GB (March 2000)
Language:
English
Format:
PDF
Description

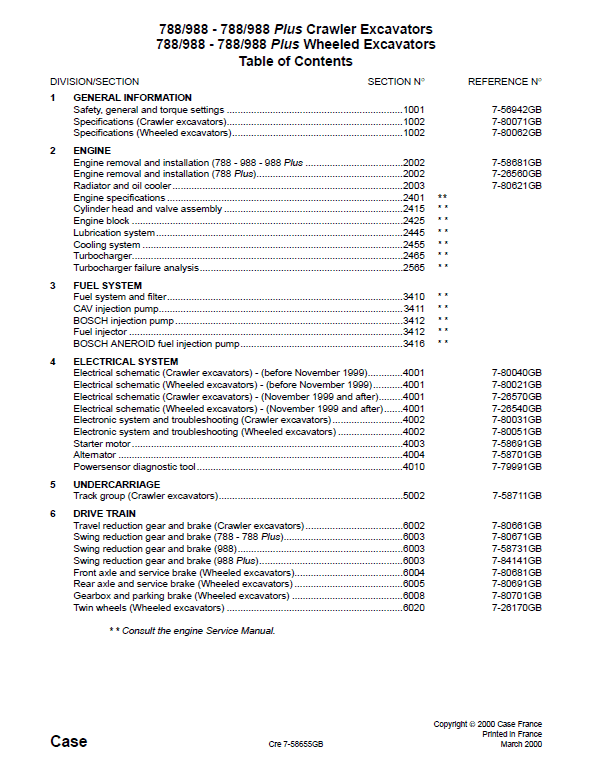

Table of Contents
General Information
Engine
Fuel System
Electrical System
Undercarriage
Drive Train
Undercarriage Hydraulics
Upper structure Hydraulics
Manual Extract:
Located near the right-hand control lever, it has a front face covered with a silk-screened plastic film, an electronic circuit board with six momentary-action push-buttons, eight LED type indicator lamps, electronic components and a connector.
The functions of the control panel can be classified under four modes:
– The "Work" mode, consisting of the following push-buttons: "FINE" 1580 to 1620 rpm (low flow work, handling), "ECO" 1880 to 1920 rpm (economical, digging) and "MAX" 2180 to 2220 rpm (maximum power, hard work).
– The "Idle" mode consisting of the following push-buttons: "LOW" 900 to 1000 rpm (low idle) and "AUTO" 1180 to 1220 rpm (automatic idle).
– The "Travel" mode (two-speed excavators only) has two indicator lamps: "POSITION 1" (low speed) and "POSITION 2" (high speed).
– The "Pre-heat" mode has an indicator lamp: a flashing lamp shows the machine has not yet reached its normal operating temperature. When that lamp goes out the machine is ready to work.
