Case 752EX Vibratory Compactor Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
475 pages
Specifications:
•
Brand:
New Holland
•
Model:
752EX
•
Type:
Compactor
•
Manuals:
Service Manual
•
Publication Numbers:
48174560 (April 2018)
•
Language:
English
•
Format:
PDF

Description
Table of Contents
Content
Introduction
Machine completion and equipment
Engine

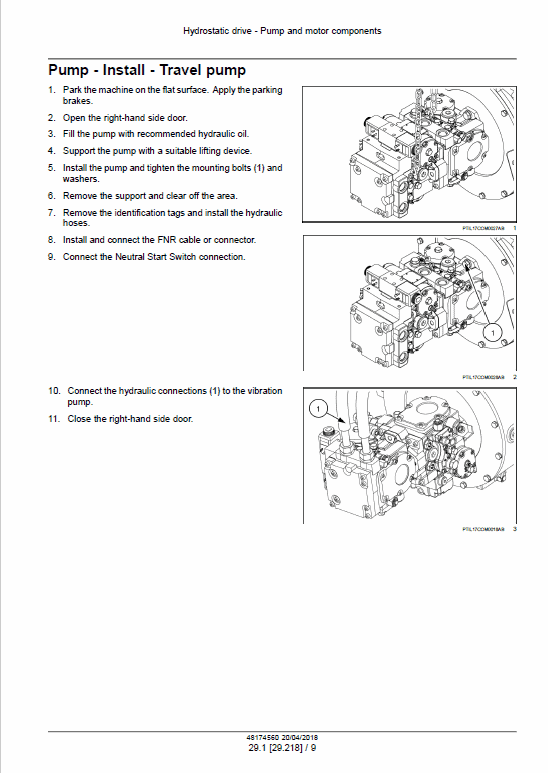

Hydrostatic Drive
Hydraulic System
Frames and Ballasting
Steering
Electrical System
Platform, Cab, Bodywork and Decals
Special Tool Index
Manual Extract: Engine cooling system – Remove

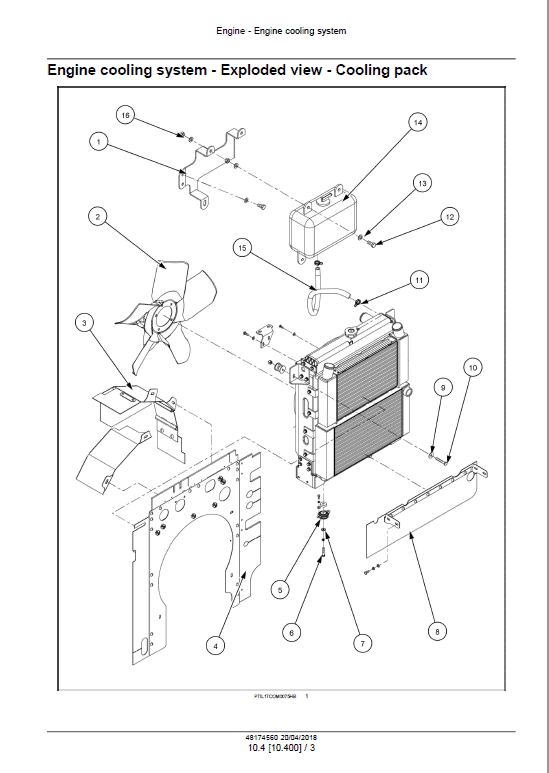

Engine cooling system – Remove – Cooling pack 1. See the Engine cooling system – Exploded view Cooling pack (10.400)
2. Park the machine on a level surface.
3. Switch OFF the engine and apply parking brake.
4. Keep a container of suitable capacity below the cooling pack.
5. Loosen the drain nut and drain the coolant.
6. Remove the upper and lower hoses of the radiator.
7. Cover the hose openings.
8. Disconnect the hose (15) from the coolant reservoir and cover the openings.
9. Remove the after-cooler connections and cover the openings.
10. Remove the deflector plates at the sides (4), (8).
11. Connect a suitable lifting device to the cooling pack.
12. Loosen and remove the upper mounting bolts.
13. Loosen and remove the lower mounting bolts.
14. Lift the cooling pack slowly clear of the machine.
