Case 680L Loader Backhoe Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
Service Manual:
1362 pages
Specifications:
Brand:
New Holland
Model:
Case 680L
Type:
Backhoe Loader
Manuals:
Service Manual
Publication Numbers:
8-74642 (June 1992)
Language:
English
Format:
PDF

Description

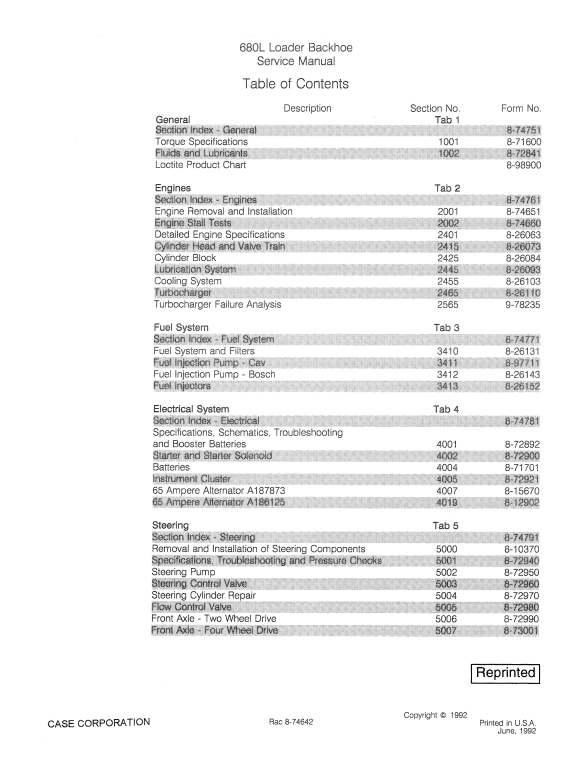

Table of Content (Service Manual)
General
Engines
Fuel System
Electrical
Steering
Power Train
Brakes
Hydraulics
Mounted Equipment
Rear Pocket
Manual Extract Brake Relief Valve Pressure Test
1. Lower the bucket to the floor.
2. Apply the parking brake and stop the engine.
3. Connect the vacuum pump to the hydraulic reservoir.
Start the vacuum pump.
4. Disconnect the hose from the fitting in the brake section of the hydraulic pump.
5. Connect the tee fitting to the fitting in the brake section of the hydraulic pump.
6. Connect the hose to the tee fitting.
7. Connect the pressure gauge to the tee fitting.
8. Stop the vacuum pump.
9. Start and run engine at full throttle. Heat the oil to operating temperature.
1 O. Push down on a brake pedal as far as possible.
11. Read the pressure gauge. The pressure gauge must be 1650 to 1750 psi (11 377 to 12 066 kPa, 113.8 to 120.7 bar).
12. If the pressure is not correct, adjust the brake relief valve.
