Case 680H Loader Backhoe Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
Service Manual:
1518 pages
Specifications:
Brand:
New Holland
Model:
Case 680H
Type:
Backhoe Loader
Manuals:
Service Manual
Publication Numbers:
9-69301 (April 1982)
Language:
English
Format:
PDF

Description

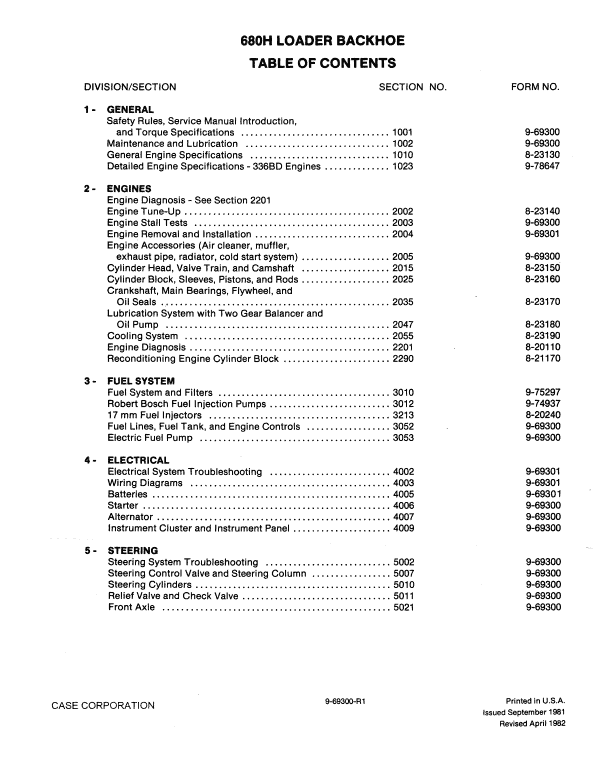

Table of Content (Service Manual)
General
Engines
Fuel System
Electrical
Steering
Power Train
Brakes
Hydraulics
Mounted Equipment
Manual Extract: Troubleshooting Loader lift Cylinder
Move the loader control lever into the Raise position.
Hold the loader control lever in the Raise position until the loader arm stops moving.
Stop the engine.
Put a support in position under the loader bucket to keep the loader arm in position.
Disconnect the hose at the rod end of each lift cylinder.
Put a plug in the hose.
Start and run the engine at full throttle. Move the loader control lever into the Raise position.
Hold the loader control lever in the Raise position and check for leakage from the fitting at the rod end of each lift cylinder.
If there is constant leakage from the fitting, the packing is damaged and repairs must be made.
