Case 630, 632, 642 Tractor Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
578 pages
Specifications:
•
Brand:
New Holland
•
Model:
630, 632, 642
•
Type:
Tractor
•
Manuals:
Service Manual
•
Publication Numbers:
9-992381
•
Language:
English
•
Format:
PDF

Description

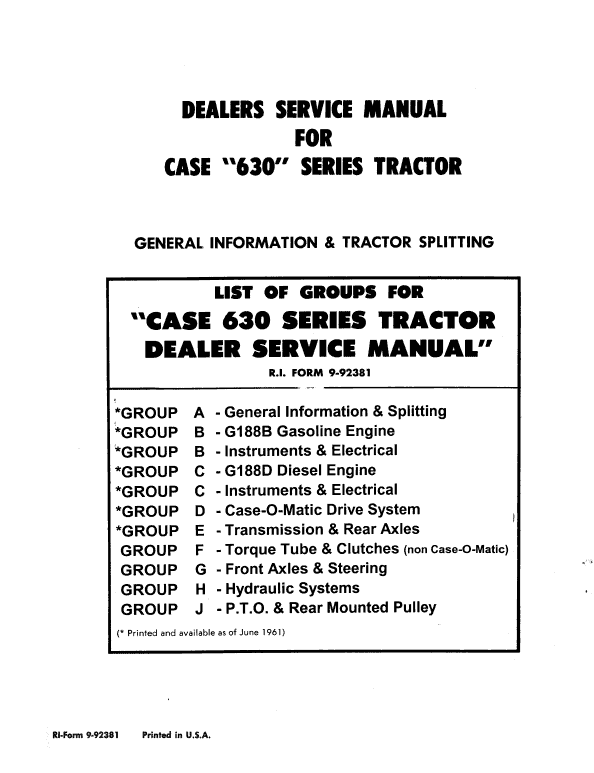

Table of Content
GROUP A – General Information & Splitting
GROUP B – G188B Gasoline Engine
GROUP B – Instruments & Electrical
GROUP C – G188D Diesel Engine
GROUP C – Instruments & Electrical
GROUP D – Case-0-Matic Drive System
GROUP E – Transmission & Rear Axles
GROUP F – Torque Tube & Clutches (non Case-0-Matic)
GROUP G – Front Axles & Steering
GROUP H – Hydraulic Systems
GROUP J – P.T.O. & Rear Mounted Pulley
Manual Extract: Tractor Serial Number Location
The letter "C" after the Serial Number indicates Case-0-Matic Drive.
The letter "H" after the Serial Number would indicate that tractor was equipped at the factory with a High Speed 4th gear in the main transmission.
The letter "L" instead of the "H" would indicate tractor is equipped with a Low Speed 4th gear.
EXAMPLE: 641C – H would be a General Purpose Gasoline Tractor with Case-0-Matic Drive and a High Speed 4th gear.
