Case 588 Excavator Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
Service Manual:
762 pages
Specifications:
Brand:
Case
Model:
Case 588
Type:
Excavator
Manuals:
Service Manual
Publication Numbers:
7-80591GB (November 1999)
Language:
English
Format:
PDF

Description

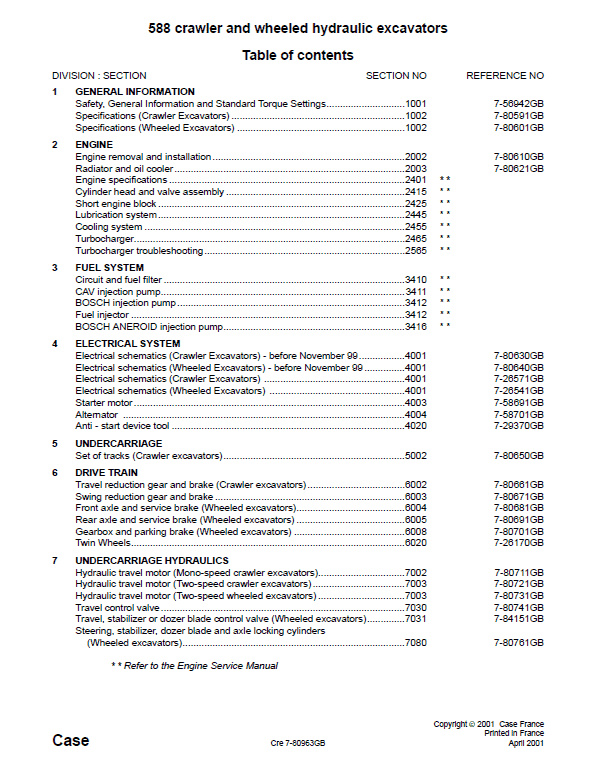

Table of Contents
GENERAL INFORMATION
ENGINE
FUEL SYSTEM
ELECTRICAL SYSTEM
UNDERCARRIAGE
DRIVE TRAIN
UNDERCARRIAGE HYDRAULICS
UPPERSTRUCTURE HYDRAULICS
UPPERSTRUCTURE
Manual Extract:
Engine
Make and model ……………………………………………………………………………………………………………………CASE 4T 390
Total SAE power rating at 2800 rpm…………………………………………………………………………………… 79.8 kW (108 hp)
4 stroke, 4 cylinder diesel engine ……………………………………………………………………………………………..turbocharged
Displacement…………………………………………………………………………………………………………………………….. 3920 cm3
Bore…………………………………………………………………………………………………………………………………………….102 mm
Stroke ………………………………………………………………………………………………………………………………………….120 mm
Cooling ………………………………………………………………………………………………………………………………… water-cooled
Battery start …………………………………………………………………………………………… Two 12-volt batteries, 24 V, 100 Ah
Hydraulic system
Variable flow circuit with all fuinctions independent and simultaneous.
Working pressure …………………………………………………………………………………………………………………………..350 bar
Total capacity of hydraulic reservoir ……………………………………………………………………………………………………. 115 L
Total capacity of system …………………………………………………………………………………………………………………….184 L
2-body pump :
1 variable displacement body for the attachment and travel circuits …………………………………………….flow 210 L/min
1 fixed flow body for the upperstructure frame swing …………………………………………………………………..flow 44 L/min
