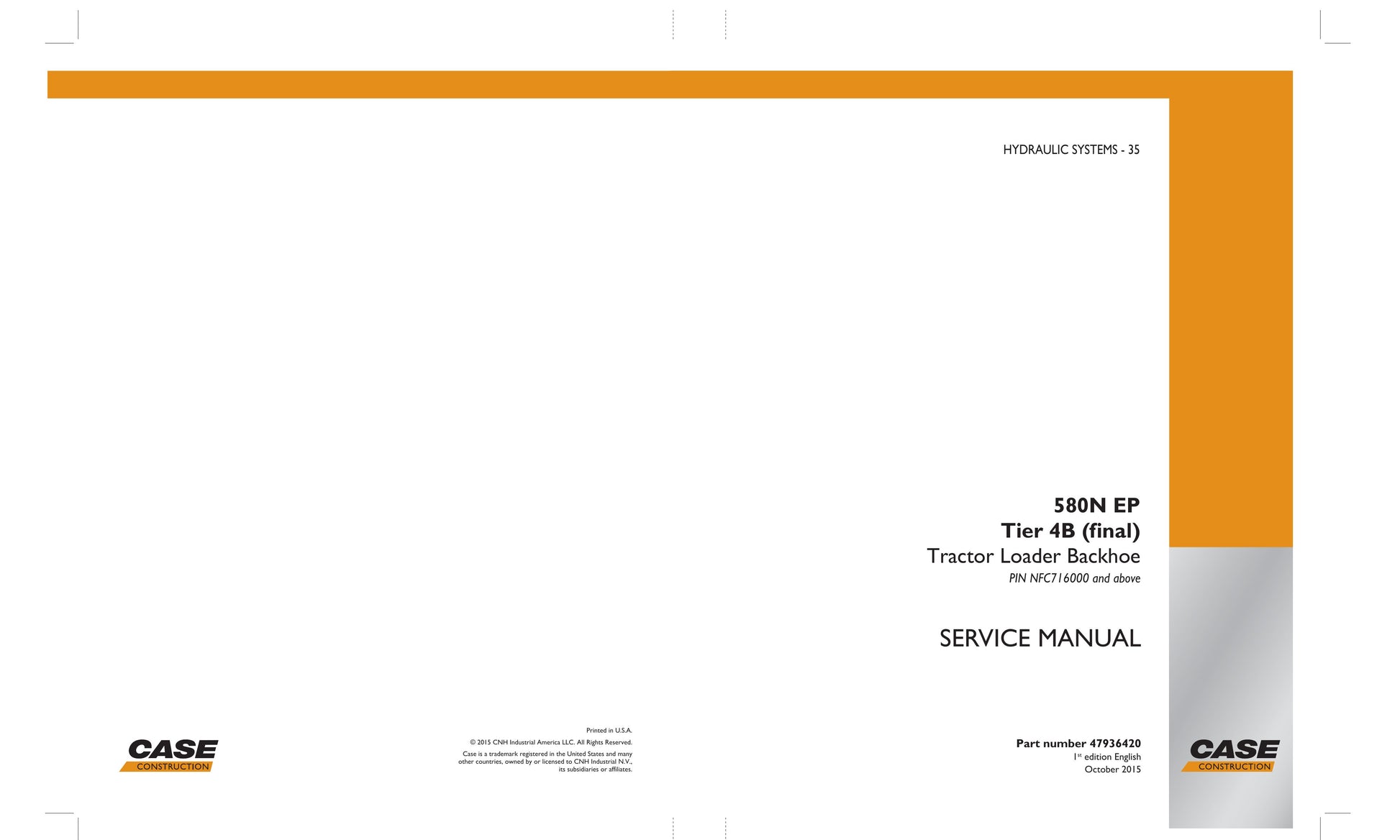

CASE 580N Backhoe Loader Factory Workshop Service Manual 47936420

CASE 580N Backhoe Loader Factory Workshop Service Manual 47936420
=================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 37.1 MB
Pages: 377
Format: PDF
Language: English
Brand: CASE

CONTENTS (Table of Contents):
----------------------------------------
- Hydraulic systems - 35
- Hydraulic systems - 000
- Pump control valves - 102
- Fixed displacement pump - 104
- Variable displacement pump - 106
- Remote control valves - 204
- Reservoir, cooler, and filters - 300
- Safety and main relief valves - 350
- Main control valve - 359
- Auxiliary hydraulic valves and lines - 525
- Stabilizer hydraulic system - 703
- Front loader bucket hydraulic system - 723
- Excavator and backhoe hydraulic controls - 726
- Boom hydraulic system - 736
- Dipper hydraulic system - 737
- Excavator and backhoe bucket hydraulic system - 738
- Swing arm hydraulic system - 739
- Telescopic arm hydraulic system - 740

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
