Case 580LE, 580SLE, 580LSP, 590SLE, 590LSP Loader Backhoe Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
1492 pages
Specifications:
•
Brand:
Case
•
Model:
580LE, 580SLE, 580LSP, 590SLE, 590LSP
•
Type:
Loader
•
Manuals:
Service Manual
•
Publication Numbers:
7-79443GB (Apr 2000)
•
Language:
English
•
Format:
PDF

Description

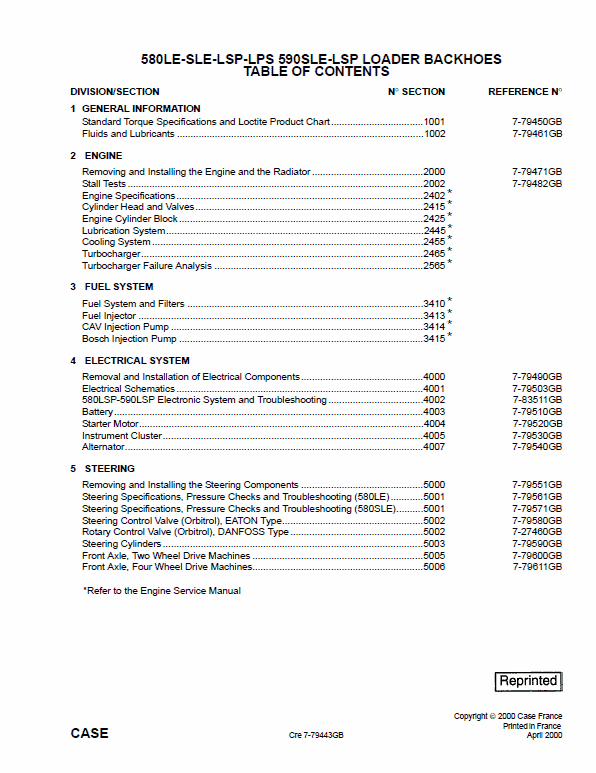

Table of Contents
Engine
Electrical System
Steering
Transmission
Brakes
Hydraulic System
Chassis/Attachment
Manual Extract:
TORQUE CONVERTER INLET PRESSURE CHECK Tools
required
CAS-1804 Pressure Test Kit Test procedure
1. Engage the parking brake.
2. Start the engine.
3. Oil at operating temperature.
4. 20 bar pressure gauge connected to test point M5.
5. All transmission controls in neutral.
6. Engine running at 2350 rpm.
7. Read gauge and record pressure.
8. See page 3 for specifications.
CHECKING PRESSURE AT TORQUE CONVERTER OUTLET
Tools required
CAS-1804 Pressure Test Kit Test procedure
1. Engage the parking brake.
2. Start the engine.
3. Oil at operating temperature.
4. 20 bar pressure gauge connected to test point M7.
5. All transmission controls in neutral.
6. Engine running at 2200 rpm.
7. Read gauge and record pressure.
8. See page 3 for specifications.
