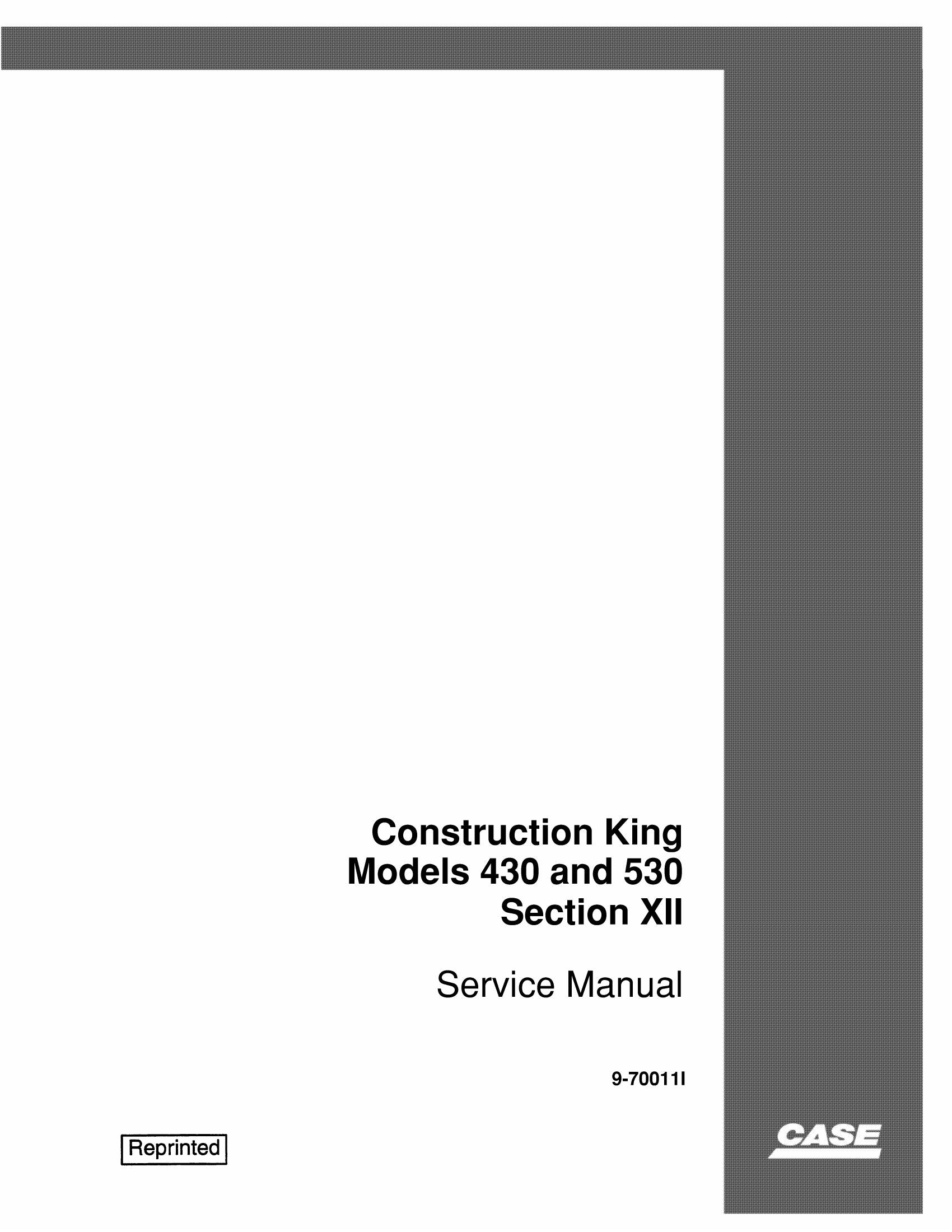

CASE 430 530 Backhoe Loader Factory Workshop Service Manual 9-70011I

CASE 430 530 Backhoe Loader Factory Workshop Service Manual 9-70011I
====================================================================

TECHNICAL SPECIFICATIONS:
----------------------------------------
Size: 43.21 MB
Pages: 422
Format: PDF
Language: English
Brand: CASE

CONTENTS (Table of Contents):
----------------------------------------
- Section 1020 - Detailed Specications 480 and 580 Series B Tractors

- Section F - Electrical System

- Section 2013 - Cylinder Head and Valves 148, 159, 188 and 201 Spark Ignition Engines
- Section 2014 - Cylinder Head and Valves 188 Diesel Engines

- Section 2023 - Engines Block Assemblies 201G, 188G, 159G, 148G Spark Ignition Engines
- Section 2024 - Engines Block Assembly 188D Diesel Engine

- Section I - Servicing The Cav Fuel Injectors

- Section 3022 - Roosa Master Model DB Fuel Injection Pumps 188 Series Diesel Engines
- Section 3033 - Model 267 Series Zenith Carburetor for the 188G and 159G Spark Igition Engines

- Section 4019 - Break-Away Couplings and Portable Hydraulic Cylinders

- Section D - Servicing The Remote Hydraulic Valves

- Section O - Servicing The Hydrostatic Steering System, Engine Power Pump, Control Valve, Manual Pump, Cylinders
- Section R - Servicing The Draft-O-Matic Hydraulic System, Valve, Rockshaft Assembly

- Section 3SO - Servicing The Constant Running Power Take-Off
- Section 65 - Four Speed Transmission and Final Drive

- Section 66 - Mechanical Shuttle

- Section 67 - Dual Range Assembly
- Section 68 - 11 Inch Traction Clutch

- Section 74 - Differential Brakes, Differential Lock and Parking Brake

- Section X - Servicing The Case-O-Matic 11-Inch Torque Converter/ Control Valve/ Pressure Regulator and Pump

PLEASE NOTE:
----------------------------------------
This is a digital manual - no physical copy will be shipped.
The manual is available for immediate download after purchase.
