Case 21, 31, 35 Mini-Excavator Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
Service Manual:
324 pages
Specifications:
Brand:
Case
Model:
21, 31 and 35
Type:
Mini-Excavator
Manuals:
Service Manual
Publication Numbers:
7-83260GB (October 1998)
Language:
English
Format:
PDF

Description

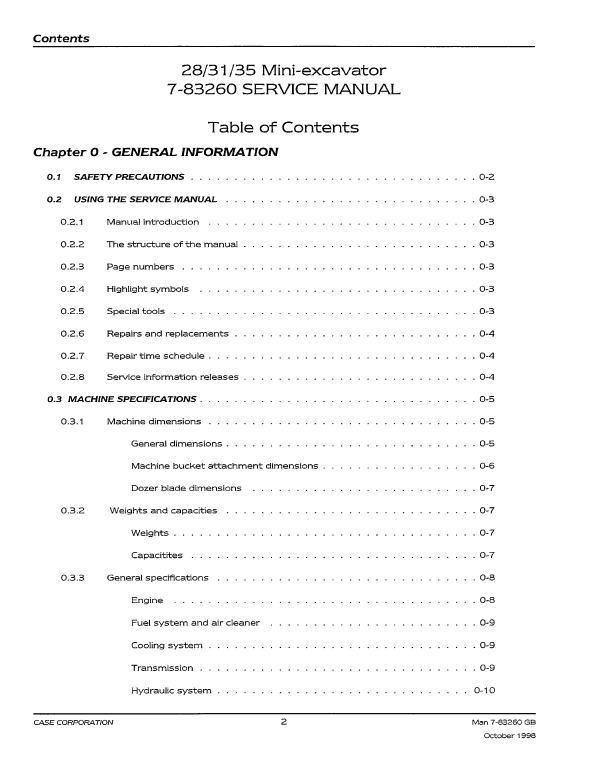

Table of Contents
General Information
Engine
Cooling

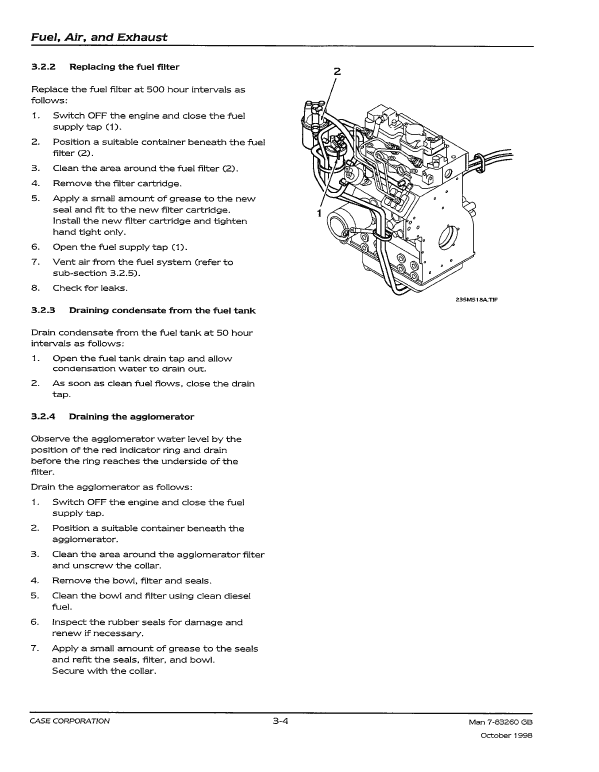

Fuel, Air and Exhaust
Track Gearbox
Brakes

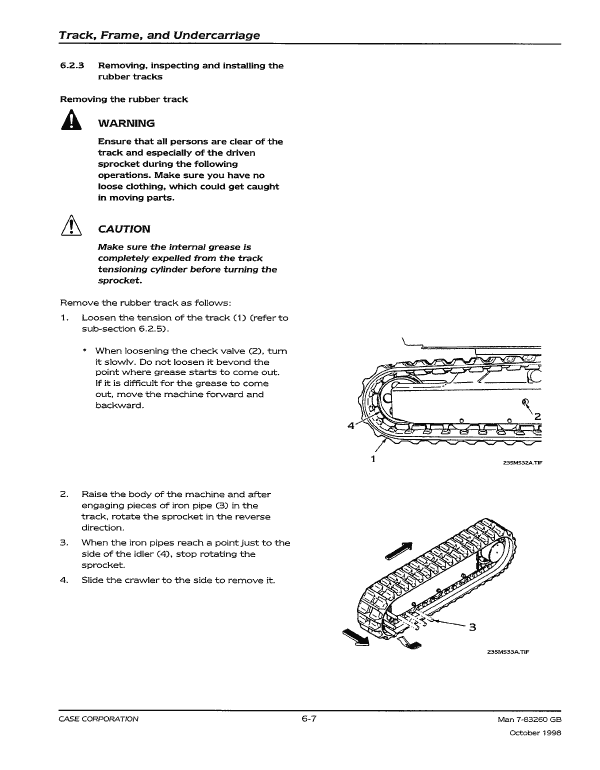

Track, Frame and Undercarriage
Cab and ROPs
Sheet Metal and Covers
Electrical System
Hydraulic System
Loader
Boom, Dipper and Linkage
Hydraulic Cylinders
Superstructure including Slew Motor
Decals
Manual Extract:

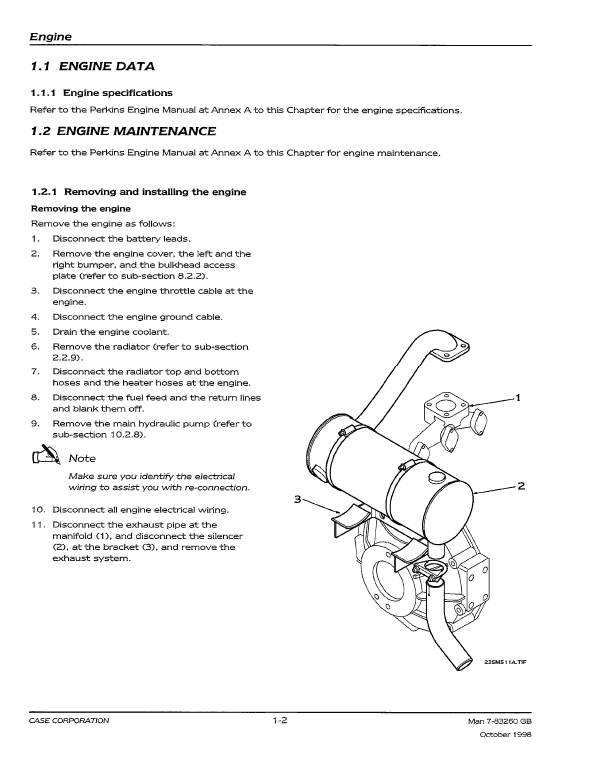

Removing the engine
Remove the engine as follows: 1. Disconnect the battery leads.
2. Remove the engine cover, the left and the right bumper, and the bulkhead access plate (refer to sub-section 8.2.2).
3. Disconnect the engine throttle cable at the engine.
4. Disconnect the engine ground cable.
5. Drain the engine coolant.
6. Remove the radiator (refer to sub-section 2.2.9).
7. Disconnect the radiator top and bottom hoses and the heater hoses at the engine.
8. Disconnect the fuel feed and the return lines and blank them off.
9. Remove the main hydraulic pump (refer to sub-section 10.2.8).
Note
Make sure you identify the electrical wiring to assist you with re-connection.
10. Disconnect all engine electrical wiring.
11 . Disconnect the exhaust pipe at the manifold , and disconnect the silencer, at the bracket , and remove the exhaust system.
