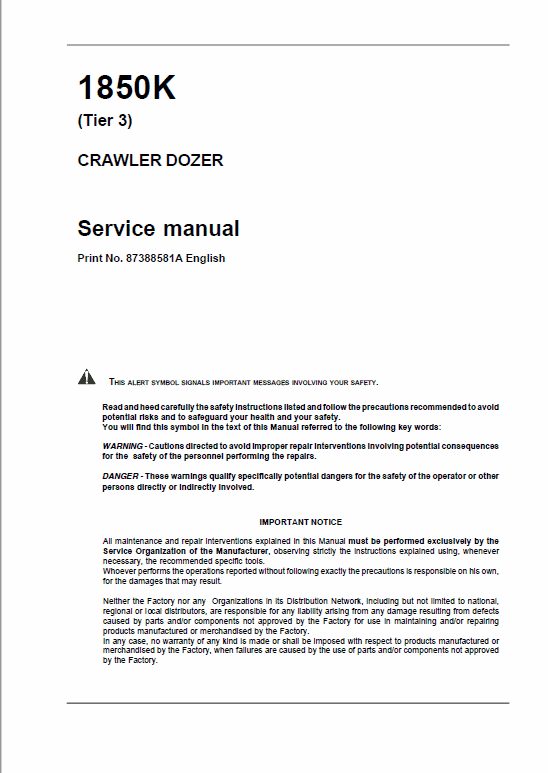

Case 1850K Crawler Dozer Service Manual Workshop Guide
Case 1850K Crawler Dozer Service Manual Workshop Guide
Regular price
$57.00 USD
Regular price
Sale price
$57.00 USD
Taxes included.
Shipping calculated at checkout.
Quantity
.
In Stock
Couldn't load pickup availability
Format : PDF
SUPPLIED AS DOWNLOADABLE LINK
Manual Included:
•
Service Manual:
465 pages
Specifications:
•
Brand:
New Holland
•
Model:
1850K
•
Type:
Dozer
•
Manuals:
Service Manual
•
Publication Numbers:
87388581A
•
Language:
English
•
Format:
PDF
Description
Table of Contents
Generalities

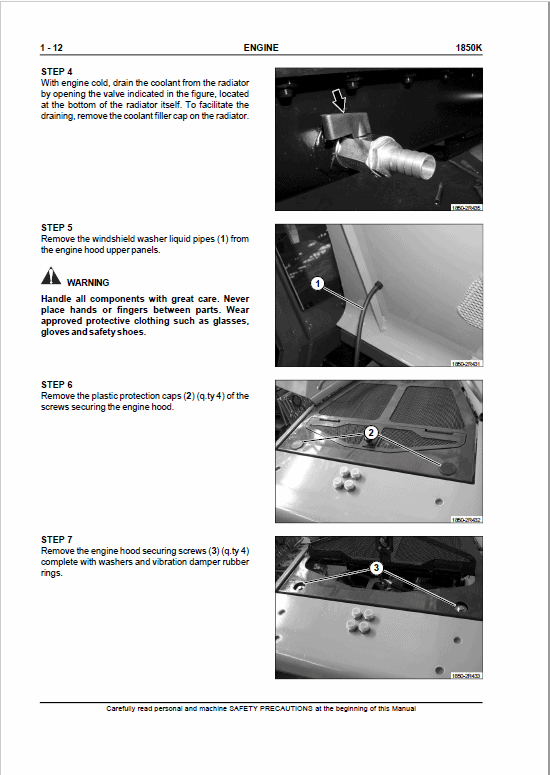

Engine

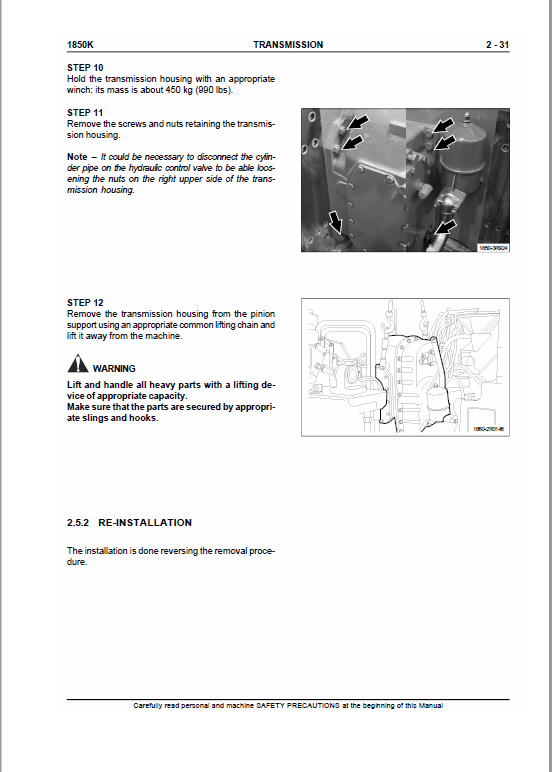

Transmission
Final Drives

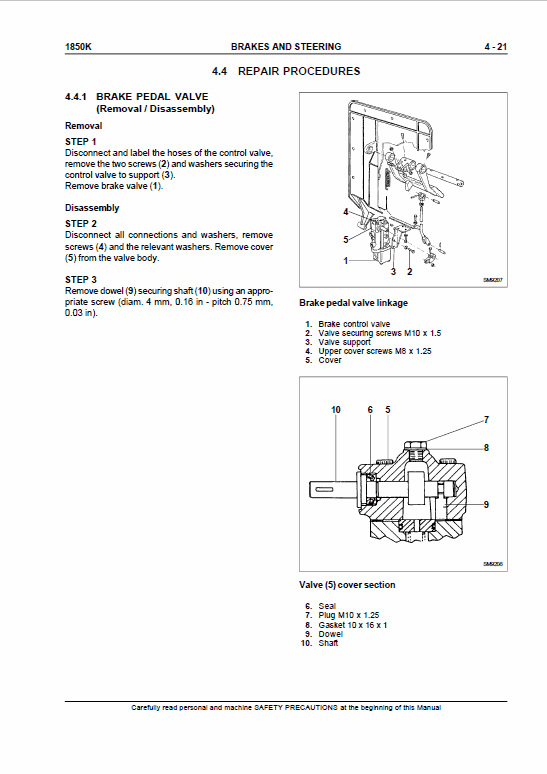

Brakes and Steering
Undercarriage
Dozer Equipment Hydraulic System
Electrical System
Air Conditioning Unit
Manual Extract: HIGH PRESSURE PIPES, CONNECTIONS, HOSES AND PIPES
This section provides correct recommendations and procedures to be followed during the disassembly of pipes and relevant connections.
– Keep all internal and external threads clean.
– Remove the plugs just before connecting the pipes and plug at once all open connections.
– Do not use or reuse semi flanges out of shape more than 0.6 mm in the Centre (see figure).
– Make sure that the seats of O-Rings are undamaged.
– Lubricate all O-Rings.
– Make sure that O-Rings are in place in the relevant seat.
– Tighten regularly so as to avoid distortions or damages to O-Rings.
– Install pipes and support bands letting the latter slightly loosen (tighten the band only after tightening the connections).
