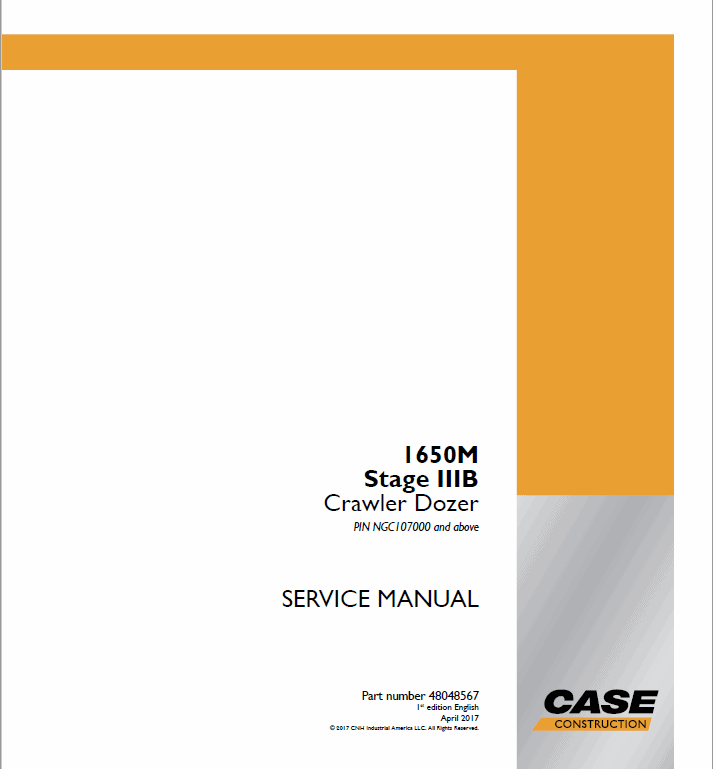

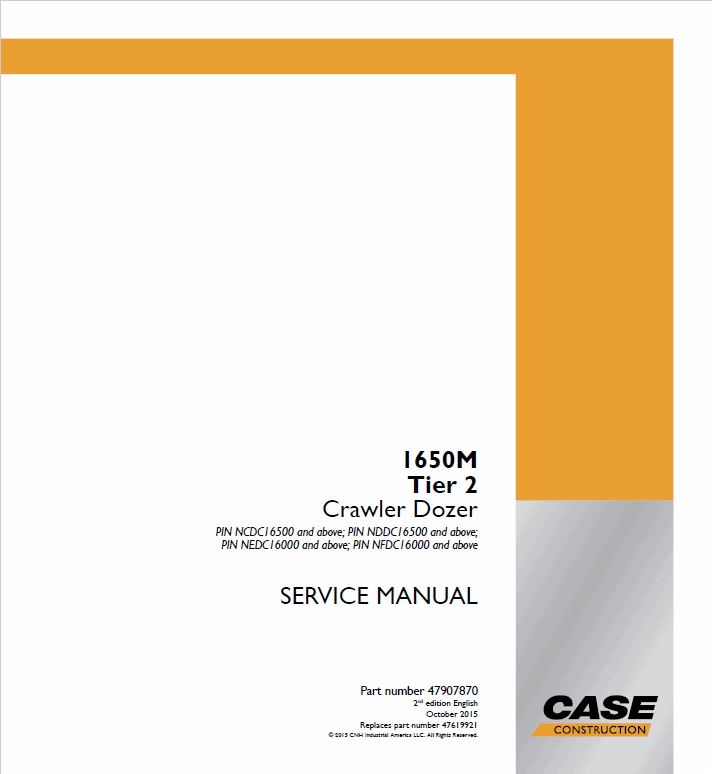

Case 1650M Crawler Dozer Service Manual Workshop Guide

Format : PDF
SUPPLIED AS DOWNLOADABLE LINK

Manual Included:
•
Service Manual:
Stage 3B- 2184 Pages & 2276 Pages, Tier 2 – 1848 Pages & 1934 Pages, Tier 4A (interim) -2374 Pages and Tier 4B (final) – 2274 Pages
Specifications:
•
Brand:
New Holland
•
Model:
1650M Stage IIIB
•
Type:
Crawler Dozer
•
Manuals:
Service Manual
•
Publication Numbers:
48048567 (April 2017), 47907870 (Oct 2015), 48048568 (April 2017) and 48048566 (April 2017)
•
Language:
English
•
Format:
PDF

Description
Table of Contents
Contents
Introduction
Hydrostatic Drive
Engine
Brakes and Controls
Hydraulic Systems
Tracks and Track Suspension
Cab Climate Control
Electrical System
Dozer Blade and arm
Tools
Platform, cab, bodywork and decals
Specials Tool Index
Electrical Schematics
Hydraulics Schematics
Manual Extract: Ripper tool – Install
1. Install tool to tool holder.
2. Install tool retaining pin.
3. Install tool retaining pin bolt and nut. Tighten the bolt and nut.
4. Connect the negative (-) battery cable (1) to the battery negative terminal (2).
5. Turn the master battery disconnect switch (3) to the ON position.
6. Close the battery access door.
