Case 1088 Excavator Service Manual Workshop Guide
Case 1088 Excavator Service Manual Workshop Guide
Regular price
$58.50 USD
Regular price
Sale price
$58.50 USD
Taxes included.
Shipping calculated at checkout.
Quantity
.
In Stock
Couldn't load pickup availability
Format : PDF
SUPPLIED AS DOWNLOADABLE LINK
Manual Included:
Service Manual:
971 pages
Specifications:
Brand:
Case
Model:
1088
Type:
Excavator
Manuals:
Service Manual
Publication Numbers:
8-86401 (June 1990)
Language:
English
Format:
PDF
Description

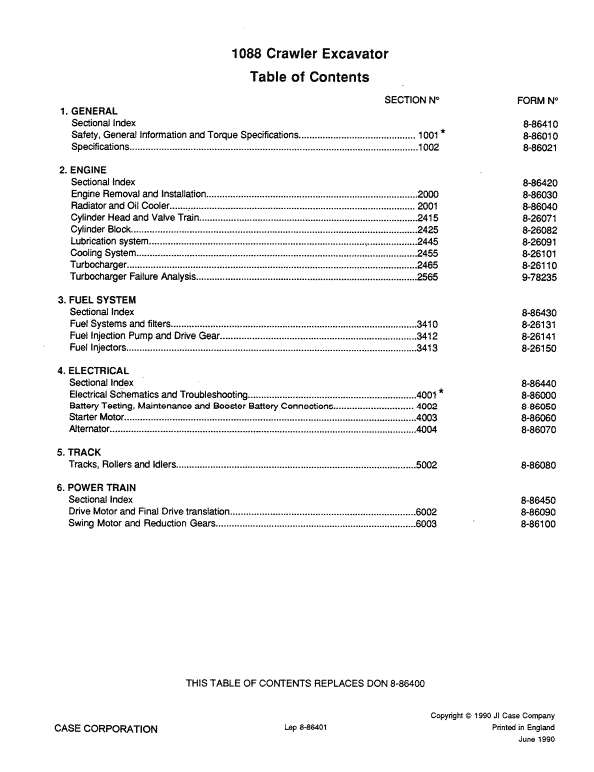

Table of Contents
General
Engines
Fuel System
Electrical
Track and Suspension
Power Train
Hydraulics
Mounted Equipment
Manual Extract Fuel Injector Tester
A Diesel Fuel Injection Nozzle tester (CAS-10249) is needed for checking a11d adjusting the injectors ..
The following instructions will work for all models of testers except for descriptions on adjustments to the tester. Operating instructions are given with the tester:
The tester is used to make the following checks:
1. Check and adjust the injector opening pressure.
2. Check the injector assembly for fuel leakage.
3. Check the injector for accurate spray pattern.
Fuel injectors must be checked on the tester when making the following service operations:
1. An injector that has been removed from the engine for cleaning, must be checked on the tester before the injector can be installed in the engine.
2. A new injector assembly must be checked on the tester before the injector can installed in the engine.
3. All the injectors must be removed and checked on the tester during an engine overhaul.
4. An injector must be removed and checked on the tester before the injector is disassembled, if the injector is the cause of engine performance that is not acceptable.
